I. NLM8000B 1535nm DPSS Telemetry Core for Coastal Defense

Ultra-Compact Optical Core for SWaP-Constrained Operations

Defying extreme payload constraints, the NLM8000B maritime laser ranging sensor projects a 1535nm DPSS pulse to guarantee IEC 60825-1 Class 1 covert and eye-safe operation. Target acquisition penetrates atmospheric interference to reach 8000m for 2.3m×4.6m vehicles and 4500m for human profiles, while drone tracking registers at 2600m.

Consolidated into a microscopic 32×48×55mm physical envelope and strictly capped at ≤62g, this optical assembly resolves critical SWaP (Size, Weight, and Power) limitations for tactical deployment. By maintaining an operating power consumption of ≤1.5W at 1Hz, the optical core directly extends the loiter duration of micro-UAV payloads and autonomous surface vessels (USVs) conducting border monitoring in high-humidity coastal zones.

Maritime Laser Ranging Sensor

8km Coastal Sensor

62g Compact Rangefinder

1535nm DPSS Core

TTL Interface Telemetry

II. Technical Precision of the NLM8000B Sensor

Near-Field Data Integrity: Operates with a minimal blind zone of ≤20m, preventing spatial data loss during autonomous drone landings or close-quarter maritime navigation.
Measurement Accuracy: Secures ±1m to ±2m ranging precision with an accuracy rate of ≥98% and a rigidly controlled false alarm rate of ≤2%.
Dynamic Tracking Frequencies: Provides single-shot actuation and 1-10Hz continuous repetition intervals, augmented by programmable range gating and first/last target priority.
Thermal Resilience: Encased for global deployment, maintaining stable automated distance detection across a -40℃ to +60℃ temperature spectrum.
Hardware Diagnostics: Features UART-based firmware updates, cumulative emission counters (±2 counts), and power-on temperature monitoring algorithms.

III. Strategic Coastal and Aerial Deployment

1. Long-Range Strategic Laser Sensor Platforms

Embedded into stationary border monitoring networks, the module provides a 4500m human detection capacity. Its IP67 weather sealing and TTL logic level interfacing allow electro-optical systems to maintain continuous remote observation despite corrosive coastal elements.

2. Micro-UAVs & Drone Surveying Equipment

Allocating only 62g to the payload budget, the sensor provides drones with high-frequency spatial telemetry for automated mapping and obstacle avoidance. The sub-watt standby draw (≤0.3W) ensures the module does not heavily impact primary flight battery reserves during extended airborne patrols.

IV. NLM8000B Technical Specification Matrix

Parameter	Specification Value & Test Conditions
Wavelength	1535nm
Max Range (Vehicle: 2.3m×4.6m)	≥8000m (Visibility ≥12km, RH ≤60%, Reflectance 0.3)
Max Range (Human: 0.5m×1.7m)	≥4500m (Visibility ≥12km, RH ≤60%, Reflectance 0.3)
Max Range (Drone: 0.2m×0.3m)	≥2600m (Visibility ≥12km, RH ≤60%, Reflectance 0.3)
Ranging Precision	≤ ±2m / ±1m
Blind Zone	≤ 20m
Measurement Frequency	Single-shot, 1-10Hz
False Alarm Rate (FAR)	≤ 2%
Beam Divergence	≤ 0.5mrad
Input Voltage	DC 4.5V ～ 16V
Power Consumption	Standby ≤0.3W \| Operating ≤1.5W @1Hz
Digital Interface	TTL (Default Baud Rate: 115200bps)
Hardware Dimensions	≤ 32mm × 48mm × 55mm
Total Weight	≤ 62g
Operating Temperature	-40 ℃ ～ +60 ℃

V. OEM Integration & Electrical Interface

Broad Input Tolerance: Operates natively on a 4.5V to 16V DC supply, simplifying integration with diverse UAV power distribution boards.
Logic Protocol: Employs TTL 3.3V logic signaling with a default 115200bps baud rate (adjustable to 57600/38400/9600bps) for rapid distance feedback to host processors.

Electrical mating is achieved via a secure Changjiang Connector model A1257WR-S-6P.

Pin No.	Label	Definition
P-1	VIN+	Power Supply, 4.5V-16V
P-2	VIN-	Power Supply Ground
P-3	POWER_ON	Enable (>2.7V), Disable (<0.3V) \| TTL 3.3V Level
P-4	UART_TX	Serial Transmit (TX): TTL 3.3V Level
P-5	UART_RX	Serial Receive (RX): TTL 3.3V Level
P-6	GND	Serial Ground Reference

VI. Mechanical and Optical Interface Specifications

The 62g micro-chassis features reinforced structural mounting points, allowing integrators to secure the telemetry core without inducing stress on internal optical pathways.

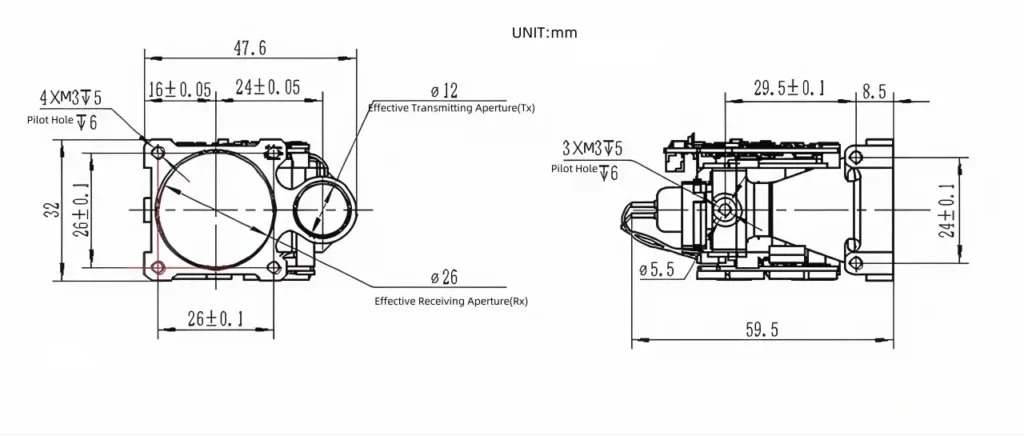

NLM8000B 8km maritime laser ranging sensor Dimensions and Optical Interface * **Title:** NLM8000B 62g Rangefinder Optical Blueprint * **Caption:** (建议留空) * **Description:** Engineering schematic for the NLM8000B laser distance sensor, detailing the 32x48x55mm footprint, Tx Φ12mm / Rx Φ26mm apertures, and M3 threaded mounting logic.

Effective Aperture: Tx Φ12mm, Rx Φ26mm | Mounting Logic: 4 × M3 (Depth 5mm) & 3 × M3 (Depth 5mm) threaded holes.

Collimation Transmitter (Tx): Projects the 1535nm pulse via a Φ12mm effective aperture, achieving a tightly controlled ≤0.5mrad beam divergence.
Photon Reception (Rx): Collects returning signals through a Φ26mm effective aperture engineered to maximize photon capture against maritime background noise.
Mounting Hardware: Provides four M3 pilot holes on the frontal plane and three M3 holes along the lateral axis to ensure zero-shift alignment.

VII. NLM8000B Multi-Sector Integration & Adaptability

The operational scope of the NLM8000B extends beyond coastal environments. Supported by a standardized TTL communication protocol and -40℃ to +60℃ environmental tolerance, this versatile non-contact measurement module provides direct automated distance detection across the following sectors:

Industrial Automation: Automated distance detection for robotics and machine vision integration.
Surveying & Construction: High-precision non-contact measurement and topographical distance profiling.
UAVs & Drones: Spatial telemetry for autonomous flight navigation and payload mapping.
Border Monitoring: Long-range coastal observation and remote perimeter security.
Aerospace: Lightweight telemetry integration for high-altitude aerial platforms.
Defense Industry: Optical core module for tactical electro-optical systems.
