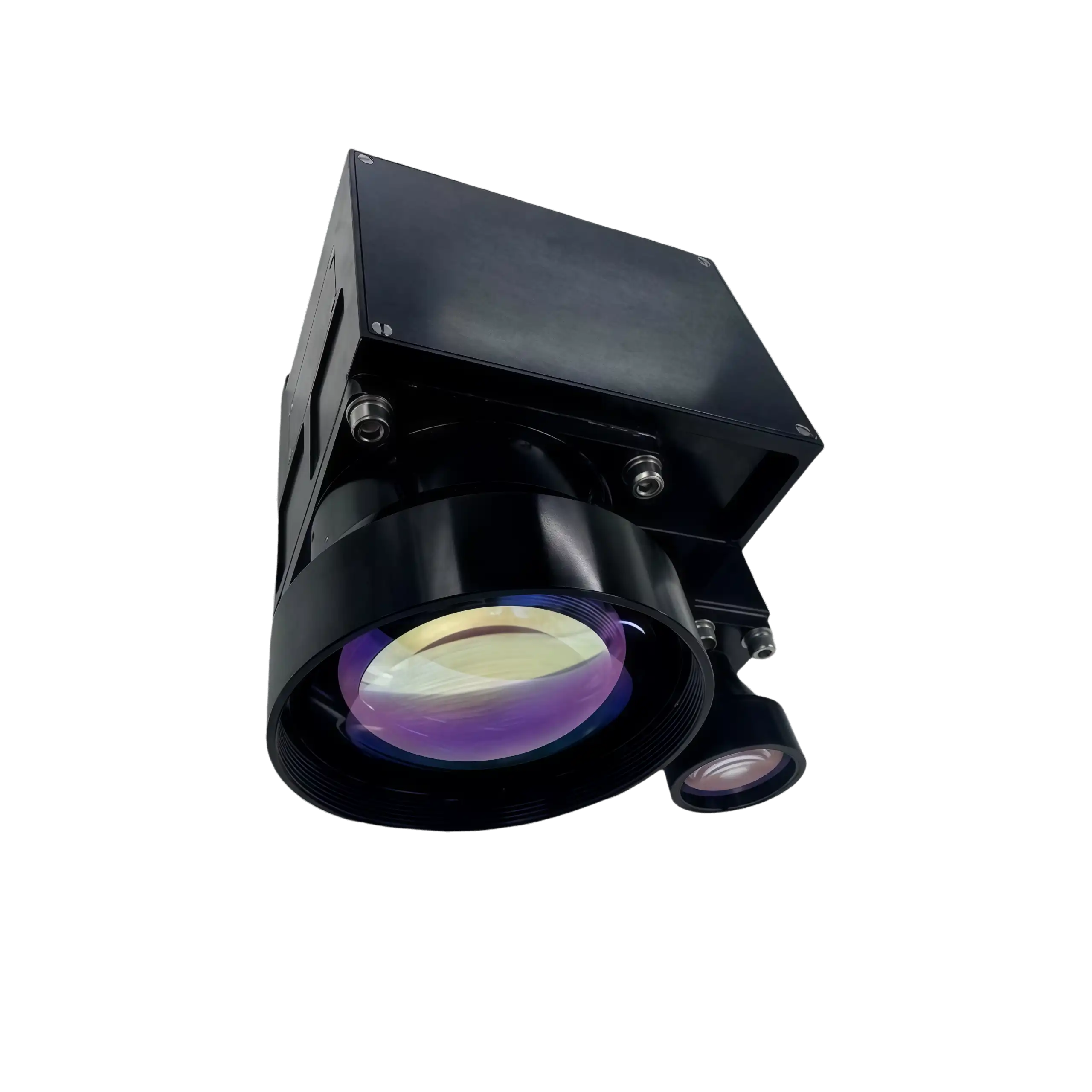

NLM20000A 20km Laser Distance Sensor for UAV Payloads

The NLM20000A is a state-of-the-art laser distance sensor meticulously crafted for sophisticated electro-optical integrations. Utilizing an advanced 1535nm DPSS mechanism, this module operates strictly within the IEC 60825-1 Class 1 eye-safe spectrum. This ensures the emitted beam remains entirely invisible to the naked eye, mitigating any ocular hazards during intensive operational scenarios or field calibrations.

At its core, the system merges a highly efficient transmitter, a large-aperture receiving optic, and unified control circuit boards (including driver and amplification modules) into a single, ruggedized housing. It is capable of accurately calculating distances to massive infrastructure at ≥20000m and resolving vehicular targets at 17000m. Despite delivering such formidable automated distance detection, the NLM20000A is characterized by its constrained physical footprint—weighing merely ≤840g. This exceptional power-to-weight ratio establishes it as an indispensable asset for drone surveying equipment and tactical sensor suites requiring uncompromising range without the burden of excess mass.

• Optimized Close-Quarter Ranging: Features a rigorously minimized blind zone of ≤100m, guaranteeing precise spatial data capture even when targets unexpectedly enter near-field perimeters.
• Versatile Firing Modes: Delivers dynamic operational flexibility with support for single-shot protocols and adjustable 1-5Hz continuous measurement rates, supplemented by advanced logic for first/last target discrimination and range gating.
• Elite Measurement Fidelity: Boasts a phenomenal accuracy rate exceeding 98%, coupled with a stringent ranging precision of ±3m and a distance resolution of ≤50m for uncompromising reliability.
• Sustainable Power Dynamics: Operates efficiently within a 22V-34V DC voltage envelope, maintaining an average power consumption of just ≤10W to extend the flight time of portable aerial platforms.
• Harsh Environment Resilience: Encased in a military-grade ruggedized shell with an IP67 protection rating, ensuring flawless functionality across extreme thermal gradients ranging from -40 ℃ to +60 ℃. (Note: Commercial grade, not intended for direct military application.)
• Intelligent Lifecycle Management: Incorporates autonomous self-test diagnostics, real-time power-on temperature acquisition, and a streamlined serial-port firmware update mechanism.

1. Drone Laser Rangefinder Modules for UAV Payloads

In the highly demanding sector of modern aviation, the NLM20000A excels as an indispensable laser distance sensor for UAV payloads. Its highly compressed physical dimensions (132×102.7×76mm) and minimal mass (≤840g) perfectly align with the strict weight budgets of commercial drones. Whether deployed for meticulous drone surveying equipment workflows or conducting accurate ranging for electrical line patrols, the sensor provides the crucial spatial intelligence required for safe, autonomous navigation in complex topologies.

2. Long-Range Strategic Laser Sensor Platforms

Beyond aerial dynamics, this 1535nm eye-safe module is a foundational component for ground-based long-range architectures. It integrates fluidly into machine vision matrices and security systems for perimeter monitoring, acting as an automated distance detection sentinel. Thanks to its temperature-resistant construction and IP67 durability, it is frequently embedded into remote monitoring solutions for meteorology and environmental research stations that demand non-contact measurement in unforgiving climates.

• Power Characteristics: Requires a continuous DC voltage of 22V to 34V, establishing an energy-conscious footprint with a typical power draw of ≤10W, ideal for prolonged deployment.
• Data Transmission: Employs the robust RS422 standard operating at 38400bps. When paired with the provided PC Software Suite and SDK, it grants developers comprehensive control over data exchange and secondary integration.

The NLM20000A structural blueprint is engineered for uncompromising stability during dynamic UAV flight maneuvers or ground-based vibration. Its meticulously machined chassis provides a secure, vibration-dampened housing for the internal optical resonators.

• Collimation Transmitter: Upper-tier emission window featuring a Tx Ø21.8mm aperture, precision-aligned to project the narrow ≤0.5mrad 1535nm laser pulse.
• Photon Collection Receiver: A substantial Rx Ø65mm large-aperture receiving lens engineered to maximize returning photon capture across the 20km operational distance, optimizing signal-to-noise ratios.
• Fixation Strategy: Employs 3 × Ø5.4mm strategically placed mounting ears (flanges) extending from the base housing, ensuring zero-shift securement to the host platform.
• Environmental Safeguards: Operators must avoid orienting the optical axes toward direct sunlight, and protect the unit from intense electrostatic discharge during the OEM integration phase.

Constructed from high-grade industrial materials, the NLM20000A laser distance sensor delivers an exceptional synthesis of extreme range, payload efficiency, and integration adaptability. By standardizing communication through the RS422 protocol and offering an exhaustive PC software suite, this non-contact measurement device strips away the complexity of hardware integration. Whether acting as the high-precision laser core of a next-generation drone surveying platform or providing automated distance detection for severe-weather remote monitoring stations, the NLM20000A provides a future-proof, highly reliable electro-optical solution.
