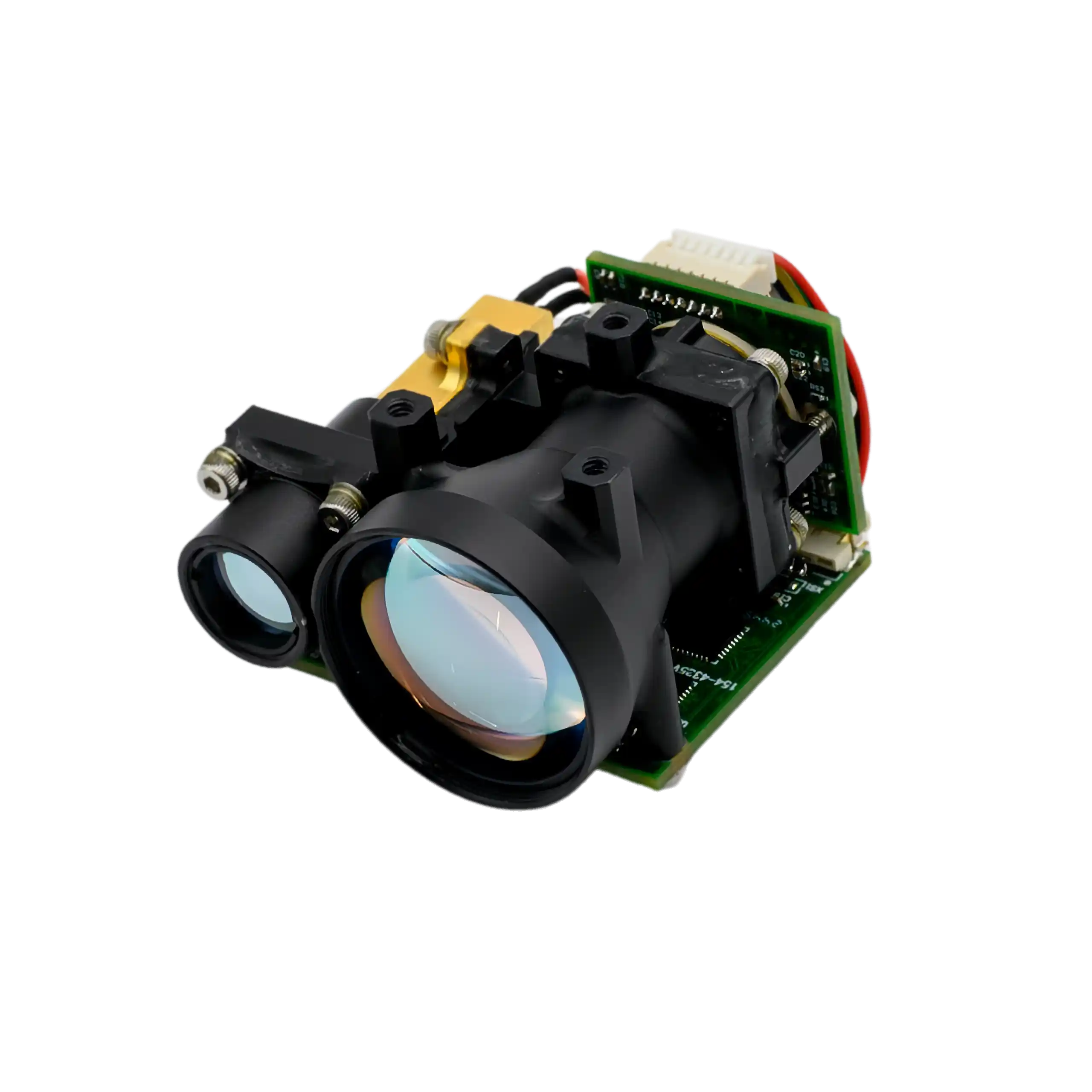

I. NLM6000A 1535nm DPSS Strategic Reconnaissance Core

Precision Sensing for Long-Distance Surveillance Platforms and Aerial Reconnaissance.

To sustain high-fidelity telemetry over strategic distances, the Long Range Laser Module NLM6000A integrates an optimized 1535nm DPSS cavity engineered to mitigate the spontaneous emission amplification (ASE) common in high-gain long-range systems. By operating strictly within the 1.5μm atmospheric window, the module leverages a spectral region of minimal solar background noise and superior photon efficiency, ensuring reliable 6km ranging against 2.3m × 2.3m targets even under complex atmospheric turbulence. The Erbium-glass oscillator is factory-calibrated to deliver a near-diffraction-limited beam quality (M²), maintaining a concentrated laser footprint that minimizes energy dispersion and maximizes return signal capture from low-reflectivity surfaces (≥ 0.2).

The structural architecture focuses on rigorous thermal compensation and axis alignment stability, crucial for long-endurance reconnaissance missions where platform thermal shifts typically degrade optical precision. Utilizing a high-stability alloy frame, the NLM6000A preserves its calibrated alignment within ≤ 0.3mrad, preventing optical axis wandering during high-frequency operation (up to 10Hz). Weighing merely 75g, this module redefines the SWaP (Size, Weight, and Power) envelope for strategic sensors, providing a Class 1 eye-safe solution that functions seamlessly in environments with humidity ≤ 80% and visibility as low as 12km, delivering consistent ≤ ±1m accuracy across its entire 6000m operational depth.

Long Range Laser Module

Strategic Reconnaissance Payload

1535nm Eye-Safe Telemetry

Aerospace Sensor Integration

Advanced Surveillance Platform

II. Technical Superiority of the 6km Reconnaissance Engine

High-Speed Pulse Agility: Supports adjustable repetition frequencies from 1Hz to 10Hz for real-time tracking of dynamic strategic targets.
Precision Depth Fidelity: Maintains a standard accuracy of ≤ ±1m with a confidence rate of ≥ 98%, ensuring reliable geospatial data.
Mission-Critical Resilience: Operating effectively from -40℃ to +60℃ with IP67 protection for global deployment in demanding field environments.
Advanced Range Gating: Features sophisticated first/last target ranging logic to filter out environmental clutter and atmospheric particulates.

III. Application Scenarios for Strategic Surveillance

UAV Reconnaissance & Strategic Mapping

Optimized for long-endurance drone payloads, the NLM6000A provides the strategic reach required for border reconnaissance and topographical mapping, enabling safe distance operations for high-value aerial assets.

Aerospace & Strategic Sensor Integration

The module’s mission-critical reliability and compact form factor make it a preferred choice for integration into electro-optical pods and high-performance gimbals for vehicle-mounted and aircraft-based tracking systems.

Meteorology & Environmental Monitoring

With high photon efficiency and 1535nm penetration, the sensor is utilized for atmospheric monitoring and long-distance ranging in regions prone to heavy haze or maritime salt spray.

IV. NLM6000A Technical Specification Matrix

Parameter Specification	NTRON Standard Technical Values
Total Weight	≤ 75g (SWaP-Optimized Chassis)
Laser Technology	1535nm ± 5nm Erbium-glass (DPSS) / Class 1
Strategic Range Depth	≥ 30m ~ 6000m (Target: 2.3m × 2.3m, Ref. ≥ 0.2)
Measurement Accuracy	≤ ± 1m (Accuracy Rate ≥ 98%)
Continuous Ranging Duration	30 Minutes
Blind Zone Optimization	≤ 30m for short-range target filtering
Testing Conditions	Visibility ≥ 12km; Relative Humidity ≤ 80%
Repetition Frequency	1Hz ~ 10Hz (Software Adjustable)
Supply Voltage Interface	DC 9V ~ 15V
Power Consumption (Peak)	≤ 8W (Maximum Draw)
Power Consumption (Standby 1 / Standby 2)	≤ 1.5W (No Emission) / ≤ 3.5W (Continuous 10Hz)
Operating Environment	-40℃ to +60℃ (Storage: -50℃ to +70℃)
Beam Divergence Angle	≤ 0.5mrad (High Concentration Output)
Aperture (Tx / Rx)	Φ 10mm / Φ 25mm
Communication Logic	RS422 (115200bps Default)
Mechanical Dimensions	≤ 51mm × 35mm × 45mm

V. OEM Integration & Electrical Interface

Integration Protocol: Supports firmware updates via serial port and real-time temperature acquisition for system health monitoring.
Connector & Wiring Specification: Mates with A1257H-7P receptacle; trim lead wires to 100mm ±20mm before termination.

Pin No.	Label	Host Computer Interface Logic
P-1	VCC	Rangefinder Power Supply (DC 9V~15V)
P-2	GND	Power Ground
P-3	RS422 RX+	Signal Input Port (Host to Rangefinder)
P-4	RS422 RX-	Differential Signal Input-
P-5	RS422 TX-	Signal Output Port (Rangefinder to Host)
P-6	RS422 TX+	Differential Signal Output+
P-7	RS422_GND	Signal Ground for Communication Interface

VI. Mechanical and Optical Interface Specifications for 6km Modules

The NLM6000A structural blueprint is designed for rigid fixation on aerospace platforms, utilizing a secure 3 × M2.5 threaded mounting pattern to maintain optical integrity during high-G maneuvers.

NLM6000A Long Range Laser Module Dimensions and Optical Interface

Effective Aperture: Tx Φ 10mm, Rx Φ 25mm | Mounting: 3 × M2.5 threaded holes for secure gimbal integration.

Optical Window Orientation: Integrated Φ 10mm laser emission window and Φ 25mm large-aperture reception window for optimized signal-to-noise ratio at strategic distances.
Axis Stability Logic: Features factory-calibrated tri-point anchoring via 3xM2.5 threads to ensure ≤ 0.3mrad axis parallelism relative to the mounting datum.
Optical Protection Warning: To preserve the high-sensitivity Erbium-glass core, avoid direct exposure of the receiver optics to high-intensity sunlight.

VII. Long Range Laser Module Universal Adaptability

The Long Range Laser Module NLM6000A is engineered for high-level universal adaptability, providing a standardized telemetry solution for the most demanding autonomous aerial systems. Its lightweight 75g chassis and 6km detection range offer a future-proof sensor for strategic reconnaissance, maritime surveillance, and border monitoring. With native support for the RS422 interface and a specialized SDK for secondary development, it allows system integrators to deploy robust, mission-critical distance sensing across aerospace, industrial, and environmental monitoring platforms globally.
