Designed for large-scale electro-optical system integration, the NLM8200A coastal defense laser rangefinder module delivers strategic-grade distance telemetry up to 8200m. By utilizing a high-gain Φ40.4mm optical aperture and rugged RS422 communication, this 145g assembly provides a stable spatial data backbone for mission-critical maritime and defense platforms.

  • RS422 Differential Signaling Architecture
  • Φ40.4mm High-Sensitivity Reception Aperture
  • Strategic Reach: 11200m Large Target Baseline
  • Military-Standard 10V-14V DC Power Input
Inquiry Now
Category:

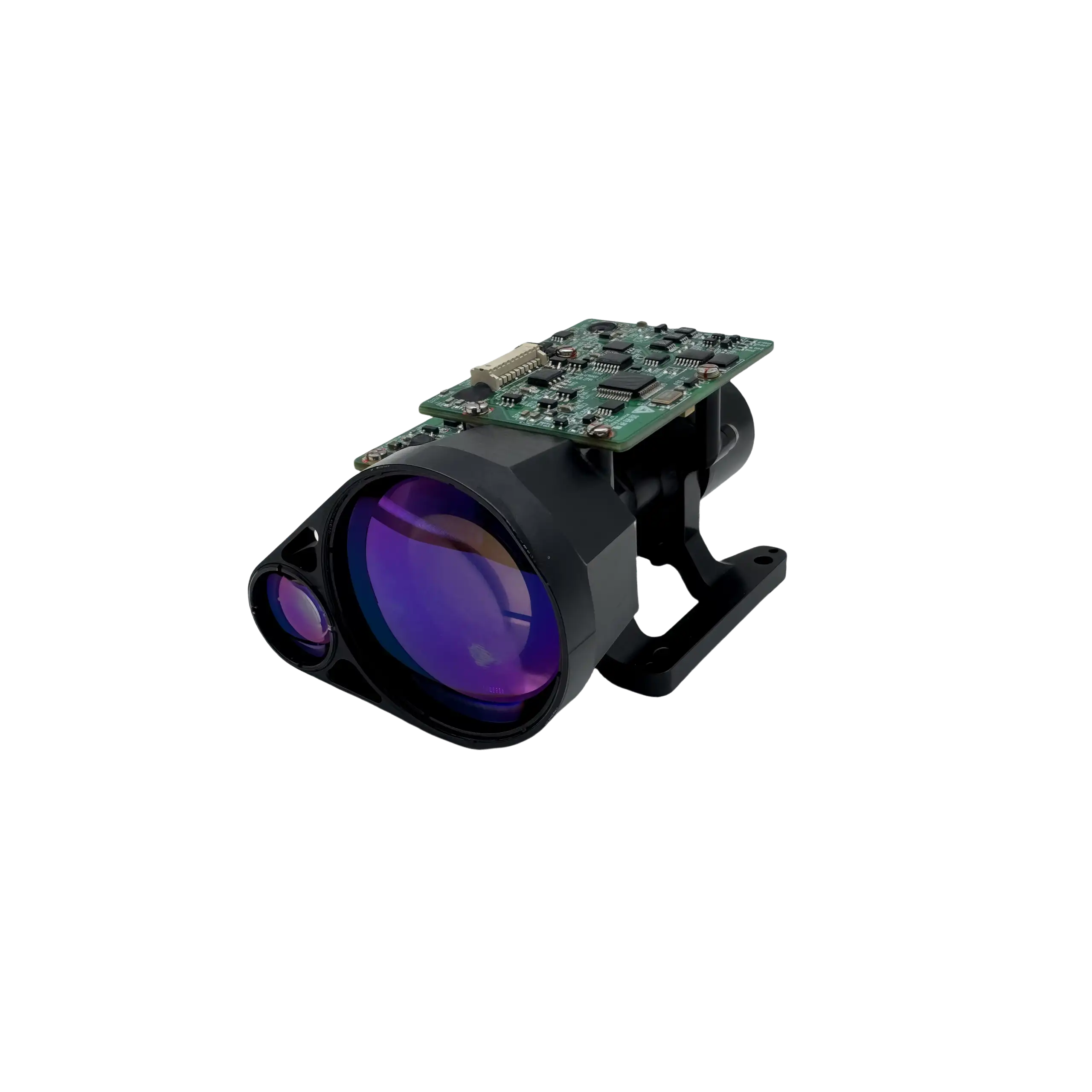

I. NLM8200A 1535nm Coastal Security Laser Rangefinder Module

Engineered for High-Reliability Integration in Severe Environments

The NLM8200A is an advanced 1535nm DPSS Coastal Security Laser Rangefinder Module optimized for long-range target acquisition where signal integrity is paramount. Featuring a massive Φ40.4mm reception lens, the module maximizes photon collection to secure vehicular targets at 8200m and human profiles at 5100m with precise ±1m accuracy.Constructed as a 145g optical core without a secondary chassis, this assembly leverages a differential RS422 interface to maintain zero-latency telemetry even in electromagnetically noisy environments. Its wide operational spectrum of -40℃ to +60℃ and IP67-rated sealing make it the definitive choice for heavy UAV payloads and strategic coastal observation networks requiring uninterrupted performance.

Coastal Security Laser Rangefinder Module
8.2km Strategic Telemetry
Large-Aperture Optical Assembly
RS422 Telemetry Engine
1535nm DPSS Core

II. Industrial-Grade Reliability of the Coastal Security Laser Rangefinder Module

  • Differential Data Transmission: The RS422 protocol ensures long-distance signal stability between the rangefinder and host computer, specifically designed for large-scale platform integration.
  • Optimized Signal-to-Noise Ratio: The Φ40.4mm oversized receiving aperture allows for stable ranging under severe maritime turbulence and high-humidity conditions.
  • Strategic Power Management: Optimized for standard 12V battery architectures, supporting a wide DC 10V-14V input range with an average draw of ≤2W and peak draw of ≤3.5W at 5Hz.
  • Surgical Precision: Achieves an accuracy rate of ≥98% and a false alarm rate of ≤2% for mission-critical situational awareness.
  • Enhanced Diagnostics: Provides real-time fault protection, laser emission count reporting, and UART-based firmware field updates.

III. NLM8200A Strategic Deployment Scenarios

1. Coastal Security & Strategic Observation

Utilizing its 5100m human detection capacity, the NLM8200A functions as a strategic tripwire for coastal perimeters. Its high-speed 5Hz repetition rate allows electro-optical systems to track fast-moving maritime vessels with zero erroneous feedback.

2. Strategic Heavy UAV Payload Integration

At 145g, the module is tailored for heavy-lift aerial platforms that prioritize optical gain over extreme miniaturization. The integrated RS422 bus simplifies secondary development via the provided SDK, enabling rapid deployment in mapping and autonomous flight systems.

IV. NLM8200A Technical Specification Matrix

Parameter MetricSpecification Value & Test Conditions
Wavelength1535nm ± 10nm (Class 1 Eye-Safe)
Ranging Range (Vehicle: 2.3m×4.6m)≥ 8200m
Max Detection Baseline≥ 11200m (Typical Large Target)
Human Target Detection≥ 5100m
Accuracy & Accuracy Rate≤ ±1m / ±2m ; ≥ 98%
False Alarm Rate (FAR)≤ 2%
Optical Aperture (Tx / Rx)Φ16.6mm / Φ40.4mm
Blind Zone & Distance Resolution≤ 80m / ≤ 50m
Pulse Repetition FrequencySingle-shot, 1Hz, 5Hz
Operating / Storage Temp.-40℃ ~ +60℃ / -55℃ ~ +70℃
Logic Protocol & Baud RateRS422 (38400 Default / 9600 / 57600 / 115200bps)
Voltage Input (DC)DC 10V ～ 14V
Power ConsumptionStandby ≤ 2W | Avg ≤ 2W@5Hz | Peak ≤ 3.5W@5Hz
Mass / Dimensions≤ 145g / ≤ 86.5 × 66.5 × 45.5mm

V. System-Level Integration & RS422 Interface

Integration is facilitated via a 10-pin 1.25mm-pitch connector. The differential TX/RX pairs ensure interference-resistant data exchange.
Pin No.LabelLogic Definition
P-1VIN+Input Power Positive (Host Power Supply)
P-2VIN-Input Power Negative
P-3NCNot Connected
P-4RS422 TXD+Signal Output (Rangefinder to Host)
P-5RS422 TXD-Signal Output (Rangefinder to Host)
P-6RS422 RXD-Signal Input (Host to Rangefinder)
P-7RS422 RXD+Signal Input (Host to Rangefinder)
P-8422_GNDRS422 Ground Wire
P-9SWDIOData Port (Download Program Usage)
P-10SWCLKClock Port

VI. Mechanical Specifications & Optical Window Orientation

NLM8200A Coastal Security Laser Rangefinder Module Dimensions and Optical Interface with Φ16.6mm transmitter and Φ40.4mm receiver apertures. NLM8200A Coastal Security Laser Rangefinder Module Dimensions and Optical Interface with Φ16.6mm transmitter and Φ40.4mm receiver apertures.-1 Aperture: Tx Φ16.6mm, Rx Φ40.4mm | Mounting: 4 × M2 and 4 × Ø3.2 Through-Holes.
  • Strategic Reception Lens: The Φ40.4mm large-aperture receiver is engineered for extreme photon capture in maritime fog.
  • Rigid Integration: Utilizes 4 × Ø3.2 through-holes for vibration-resistant mounting on mission-critical platforms.

VII. NLM8200A Multi-Sector Integration & Adaptability

Leveraging high-reliability RS422 differential signaling, this Coastal Security Laser Rangefinder Module serves as a versatile optical telemetry engine across the following sectors:

  • Coastal Security: Perimeter observation and intruder detection.
  • Aerospace: Ranging for high-altitude strategic platforms.
  • High-Resilience Industrial Integration: EO/IR system targeting and tracking components.
  • Heavy Drones: Long-range spatial data for mapping and UAV payloads.
