I. NLM7000U 1535nm High-Frequency Dynamic Tracking Core

Rapid Target Acquisition for Unmanned Aerial Vehicle Detection

The NLM7000U is a specialized UAV tracking laser rangefinder module developed to meet the strict latency and accuracy requirements of anti-drone and dynamic tracking systems. Operating at a 1535nm wavelength, this high-resilience sensor guarantees a maximum range of 7000m for large targets, but critically, it is calibrated to reliably detect a 0.2m × 0.3m commercial drone at distances up to 2000m. To counteract the erratic flight paths of aerial targets, the module supports continuous measurement frequencies up to 10Hz, feeding real-time telemetry back to the host system with a ≥98% accuracy rate. Designed for rapid mechanical integration, the complete optical and processing architecture is condensed into a 62×72×80.5mm footprint weighing just ≤180g. By combining a minimal ≤20m blind zone with an exceptionally low false alarm rate (≤1%), the NLM7000U functions as a definitive distance-sensing node for precision electro-optical tracking gimbals.

UAV Tracking Laser Rangefinder Module

Anti-Drone Sensor

Dynamic Target Acquisition

10Hz Laser Ranging Engine

C-UAS Telemetry Core

II. Hardware Advantages of the UAV Tracking Laser Rangefinder Module

Micro-Target Sensitivity: Optically tuned to extract weak signal returns, enabling the reliable detection of ultra-small aerial cross-sections (like a 0.1m × 0.2m drone at 1500m) long before visual confirmation is possible.
High-Frequency Data Stream: Operates at an accelerated 10Hz pulse repetition frequency, drastically reducing telemetry latency to maintain continuous tracking brackets on fast, evasive dynamic targets.
High-Fidelity Signal Processing: Implements advanced noise filtration to achieve a False Alarm Rate (FAR) of ≤1%, ensuring autonomous defense systems are not triggered by atmospheric clutter or background anomalies.
PTZ-Optimized Architecture: Weighing ≤180g with a peak power draw of just ≤5W, the module imposes minimal thermal and mechanical strain on high-speed pan-tilt-zoom (PTZ) optical gimbals.

III. Strategic Deployment for Dynamic Target Acquisition

C-UAS (Counter-Unmanned Aircraft Systems)

Acts as the primary distance-measuring unit for anti-drone defense platforms. The module’s ability to ping commercial drones at 2.0km provides critical early-warning data for subsequent jamming or kinetic interception.

Electro-Optical Tracking Gimbals

Integrates seamlessly into multi-sensor payloads. The 10Hz refresh rate and wide DC 5V-14V tolerance allow it to sync with high-speed thermal and daylight cameras for continuous target lock.

Air-to-Air Drone Tracking

Deployed as a payload on heavy-lift interceptor drones. Its ultra-lightweight 180g chassis prevents flight degradation while providing precise spatial awareness for autonomous aerial navigation and tracking.

IV. NLM7000U Technical Specification Matrix

Technical Parameters	Precision Specifications
Large Target Range (2.3m × 4.6m)	≥ 7000m
Micro-UAV Range (0.2m × 0.3m Drone)	≥ 2000m
Pulse Repetition Frequency (PRF)	Single-shot, up to 10Hz
False Alarm Rate (FAR) & Accuracy	FAR ≤ 1% \| Accuracy ±1m
Wavelength & Safety Class	1535nm ± 5nm \| Class 1 Eye-Safe
Blind Zone & Distance Resolution	Blind Zone ≤ 20m \| Resolution ≤ 20m
Communication Interface	RS422 or TTL (Mutually Exclusive) @ 115200bps
Supply Voltage (DC)	DC 5V ~ 14V (Typical 12V)
Power Consumption	Avg ≤ 1.5W \| Peak ≤ 5W (@12V, 1Hz)
Physical Profile (Weight & Size)	≤ 180g \| ≤ 62mm × 72mm × 80.5mm

V. UAV Tracking Sensor Electrical Interface

Interface Selection: The system supports high-speed 115200bps communication via RS422 or TTL. Note: These two protocols are mutually exclusive via the hardware pinout.
Low-Power Control: The POWER_CTL pin (P-3) enables host systems to actively manage sleep states, waking the sensor (active high to 5V or floating) only when a dynamic target is detected by radar.

Pin No.	Signal Label	Electrical Definition	Remarks
P-1	VIN+	Input Power Positive	DC 5V-14V
P-2	COM	Input Power Negative	–
P-3	POWER_CTL	Low-Power Control Port	Active when floating or pulled high to 5V
P-4	RS422_TXD+	Signal Output Port	Rangefinder to Host
P-6	RS422_RXD-	Signal Input Port	Host to Rangefinder
P-8	GND	Communication Ground	–
P-9	TTL_RXD	Signal Input Port	3.3V TTL (Mutually exclusive with RS422)

VI. Mechanical and Optical Interface Specifications

The NLM7000U is designed for rigid optical alignment within enclosed tracking payloads, utilizing four Φ3.3mm mounting holes to maintain stability during rapid PTZ acceleration.

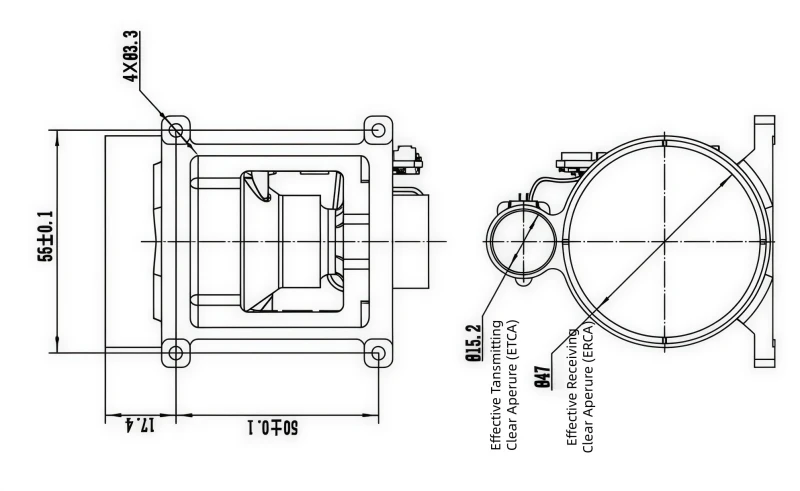

NLM7000U 7km UAV Tracking Laser Rangefinder Module Dimensions and Optical Interface

Effective Aperture: Transmitting Φ15.2mm, Receiving Φ47mm | Mounting: 4 × Φ3.3mm unthreaded holes.

VII. Universal Adaptability of the UAV Tracking Laser Rangefinder Module

While purpose-built for anti-drone defense, the hardware architecture of the NLM7000U makes it a highly adaptable telemetry core for any fast-paced industrial application. By unifying a 10Hz measurement frequency with micro-target sensitivity and dual RS422/TTL protocols, it provides an integration-ready solution for automated targeting systems. Whether deployed in border security gimbals, autonomous robotics, or advanced traffic monitoring, this UAV tracking laser rangefinder module provides a resilient, eye-safe, and instantly responsive foundation for absolute dynamic spatial awareness.
