I. NLM9500A 1535nm DPSS Advanced Industrial Telemetry Core

Bridging Massive Spatial Gaps for Autonomous Networks

The NLM9500A is a precision 9.5km laser rangefinder module developed to provide objective distance data for industrial automation, surveying, and security monitoring. Operating with a Class 1 eye-safe 1535nm DPSS laser, this sensor achieves a maximum measuring range of 9500m against large structural targets, maintaining a consistent accuracy of ±1m. To support stable target acquisition, the device is configured with a ≤80m near-field blind zone and a distance resolution of ≤50m. It executes single-shot and continuous measurements (1Hz, 5Hz) with a success rate of ≥98%, specifically engineered to eliminate false values or sudden zero readings during sustained tracking. The physical architecture is highly restricted, keeping the overall mass to just ≤102g within an IP67-rated enclosure. This ensures the module remains fully operational across -40°C to +60°C temperature variations. By integrating programmable range gating and a cumulative emission counter, it delivers a straightforward, reliable non-contact measurement solution for autonomous vehicles and infrastructure systems.

9.5km Laser Rangefinder Module

Infrastructure Monitoring Sensor

1535nm Eye-Safe Laser

Heavy Duty Telemetry Core

II. Core Advantages of the 9.5km Laser Rangefinder Module

Exceptional Range-to-Weight Ratio (SWaP): Delivers a massive ≥9500m measuring threshold while restricting total mass to just ≤102g, offering unparalleled optimization for payload-sensitive autonomous platforms.
Hardware-Level Power Control: Features a dedicated POWER_CTL pin (3V~9V high-level activation) alongside an ultra-low ≤0.001W standby consumption, allowing host systems to mechanically dictate power states.
Wide-Tolerance Electrical Integration: Accommodates a broad DC 5V-14V input range to withstand industrial voltage spikes, supported by both primary RS422 and optional TTL communication interfaces.
Optimized Near-to-Far Telemetry: Despite its extreme 9.5km reach, the optical engine maintains a strictly controlled ≤80m near-field blind zone and ≤50m distance resolution for gapless spatial tracking.

III. Strategic Deployment for Precision Industrial Sensors

Structural Health & Infrastructure Monitoring

Provides remote distance data for massive civil engineering projects. The 9500m measuring threshold allows engineers to safely monitor dam deformation, bridge integrity, and offshore platforms from a secure, long-distance vantage point.

Border Security & Coastal Surveillance

Configured for extreme long-range observation outposts. The module utilizes programmable range gating to isolate specific target distances, effectively filtering out foreground clutter while operating safely via its 1535nm Class 1 laser.

High-Altitude Aerial Surveying

Functions as the primary telemetry core for heavy-lift industrial drones. The ≤102g mass prevents payload strain, while the massive 9.5km reach enables high-altitude topographical mapping and spatial profiling over hazardous terrain.

IV. NLM9500A Technical Specification Matrix

Technical Parameters	Precision Specifications
Laser Wavelength & Safety	1535nm ± 10nm \| Class 1 Eye-Safe
Measurement Range (Large Target)	≥ 9500m
Pulse Repetition Frequency (PRF)	Single-shot, 1Hz, 5Hz
Near-Field Blind Zone	≤ 80m
Distance Resolution	≤ 50m
Ranging Accuracy	± 1m
Measurement Success Rate	≥ 98%
Optical Aperture (Tx / Rx)	Φ 15mm / Φ 37mm
Input Supply Voltage (DC)	DC 5V ~ 14V
Power Consumption	Standby ≤ 0.001W \| Avg ≤ 3W
Communication Interface	RS422 / TTL (Optional)
Supported Baud Rates	38400 (Default) / 9600 / 57600 / 115200 bps
Operating Temperature	-40°C to +60°C
Storage Temperature	-55°C to +70°C
Physical Dimensions	≤ 66mm × 59mm × 42mm
Module Weight	≤ 102g

V. Advanced Infrastructure Integration & Electrical Interface

Precision Power Control: Features a dedicated POWER_CTL pin allowing the host to activate the module dynamically using a 3V~9V high-level signal, further optimizing battery usage.
Broad Voltage Tolerance: The DC 5V-14V input range ensures the module remains functional and safe even during electrical surges common in heavy industrial equipment.
Hardware Connectivity: The host computer interfaces seamlessly with the rangefinder module via an industrial-standard 10-pin connector.
Dual Protocol Support: Supports primary RS422 communication for long-distance data transmission, while also offering 3.3V TTL signal ports (TTL_RXD/TTL_TXD) for specialized onboard computing.

Interface testing standard: 10-pin connector for power management and multi-protocol communication.

Pin No.	Signal Label	Electrical Definition	Remarks
P-1	VIN+	Input Power Positive	Power Supply
P-2	COM	Input Power Negative	–
P-3	POWER_CTL	Low-Power Control Port	Active when floating or at high-level (3V~9V)
P-4	RS422_TXD+	Signal Output Port	Rangefinder to Host
P-5	RS422_TXD-	Signal Output Port	Rangefinder to Host
P-6	RS422_RXD-	Signal Input Port	Host to Rangefinder
P-7	RS422_RXD+	Signal Input Port	Host to Rangefinder
P-8	GND	Communication Ground wire	Communication Ground wire
P-9	TTL_RXD	Signal Input Port	3.3V TTL
P-10	TTL_TXD	Signal Output Port	–

VI. Mechanical Blueprint and Optical Interface Specifications

The NLM9500A is structurally reinforced to preserve strict optical alignment, ensuring that external kinetic forces do not compromise the integrity of its long-distance photon reception.

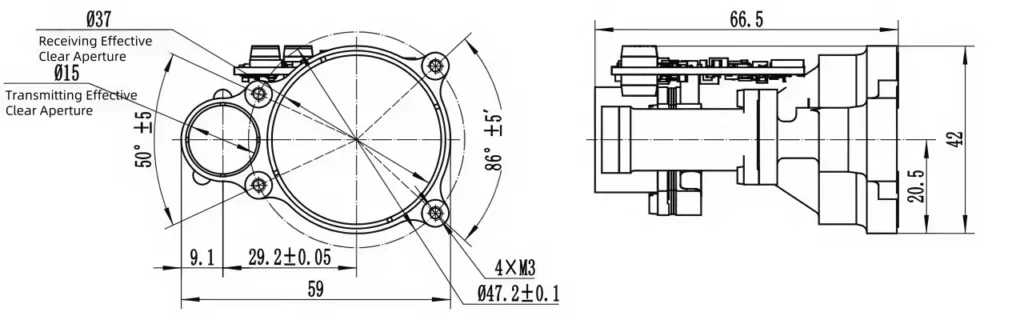

9.5km Laser Rangefinder Module Dimensions and Optical Interface

Effective Aperture: Transmitting Ø15mm, Receiving Ø37mm | Mounting: 4× M3 threaded holes on a Ø47.2±0.1 base pattern for robust industrial integration.

Structural Rigidity: The chassis utilizes a reliable 4× M3 threaded mounting configuration, allowing it to be securely bolted onto vibrating autonomous vehicle frames and drone gimbals.
Maximized Photon Capture: The optical face features a large Ø37mm receiving aperture working in tandem with the Ø15mm transmitting lens. This architecture is crucial for capturing faint photon returns at the absolute 9.5km limit.

VII. Universal Adaptability of the 9.5km Laser Rangefinder Module

The NLM9500A is a versatile telemetry module designed for integration across multiple industrial sectors. Its hardware architecture unifies a 9500m measuring range with a DC 5V-14V power tolerance and dual RS422/TTL communication protocols. These technical parameters allow the module to function as a standard distance sensor for autonomous robotics, infrastructure monitoring, surveying drones, and long-range security platforms. By providing an industrial SDK and PC software suite, the NLM9500A supports secondary development for various applications, including maritime navigation, topographical mapping, and industrial automation. This 9.5km laser rangefinder module provides a consistent, eye-safe measurement foundation for any professional environment requiring long-distance telemetry.
