The NTTIM Ultra-Miniature Satellite Navigation Anti-Jamming Terminal integrates a 4-element antenna array, anti-jamming components, and a navigation receiver unit into a single 185g unit. Measuring 65mm×65mm×30mm, it enables in-situ replacement of airborne or vehicle-mounted antennas to deliver high-precision navigation across complex electromagnetic environments.
- Frequency Points: Supports GPS-L1 and BDS-B1 links.
- Receiver Core: Integrated industrial M10S navigation engine.
- Suppression Depth: Single interference ≥105dB, three interferences ≥85dB.
- Physical Envelope: Compact 65mm×65mm×30mm chassis framework.
NTTIM GNSS Anti-Jamming Terminal Overview
The NTTIM Ultra-Miniature Satellite Navigation Anti-Jamming Terminal is an ultra-compact navigation device designed for applications such as unmanned aerial vehicles, electronic countermeasures, and communication base stations. With dimensions of 65mm×65mm×30mm, it enables in-situ replacement of most airborne or vehicle-mounted antennas. It achieves anti-jamming processing for GPS-L1/BDS-B1 frequency points against various interference types including broadband, narrowband, frequency sweeping, pulse, and combined interference. Integrating a 4-element antenna array, anti-jamming components, and a navigation receiver unit into a single unit, this product adopts a low-cost, miniaturized, and lightweight design. It caters to high-precision navigation requirements in complex electromagnetic environments, and delivers performance especially in the UAV sector.
NTTIM GNSS Anti-Jamming Primary Capabilities
- Anti-Jamming Frequency Points: Protects dual-carrier coordinates covering GPS-L1 and BDS-B1 bands securely.
- Integrated Receiver Engine: Implements an internal M10S receiver to deliver high-precision positional tracking data.
- Anti-Jamming Capability Threshold: Suppresses single interference sources at ≥105dB and three simultaneous interference sources at ≥85dB.
- Maximum Channel Capacity: Resists up to three distinct suppressive interference wavefronts arriving from different directions.
- Interference Signal Mitigation: Counters suppressive interference signals including broadband, narrowband, pulse, frequency sweeping, and combinations thereof.
NTTIM GNSS Anti-Jamming Technical Data Matrix
| Engineering Parameter | Technical Specification Value |
|---|---|
| Receiving Frequency Points | L1, B1 |
| Anti-Jamming Frequency Points | L1, B1 |
| Maximum Anti-Jamming Capacity | Up to 3 different directions simultaneously |
| Anti-Jamming Capability | Single Interference >105dB, Three Interferences >85dB |
| Integrated Receiver | M10S Core Processing Engine |
| Data Interface | RS232, default baud rate 9600 |
| Output Protocol | NMEA0183 Compliance Standard |
| Operational Voltage Input | 9~32 Vdc Wide Range Input |
| Rated Power Consumption | 10 W Continuous Steady-State Draw |
| Total System Weight | 185 g Net Mass |
| Device Dimensions | 65×65×30±0.5 (mm) Physical Enclosure |
| Operating Temperature | -40°C ~ 70°C Thermal Boundary |
NTTIM Compact Enclosure Mechanical Dimensions / Structural Profile
The physical envelope metrics of the chassis are defined by an absolute structural profile of 65mm×65mm×30mm±0.5mm, maintaining a lightweight configuration of 185g. Symmetrical integration across platforms is achieved through 4x Φ2.8mm through-holes positioned at a spacing grid layout of 59.7mm×59.7mm. This layout permits swift in-situ replacement of standard legacy airborne or vehicle-mounted passive antenna units.

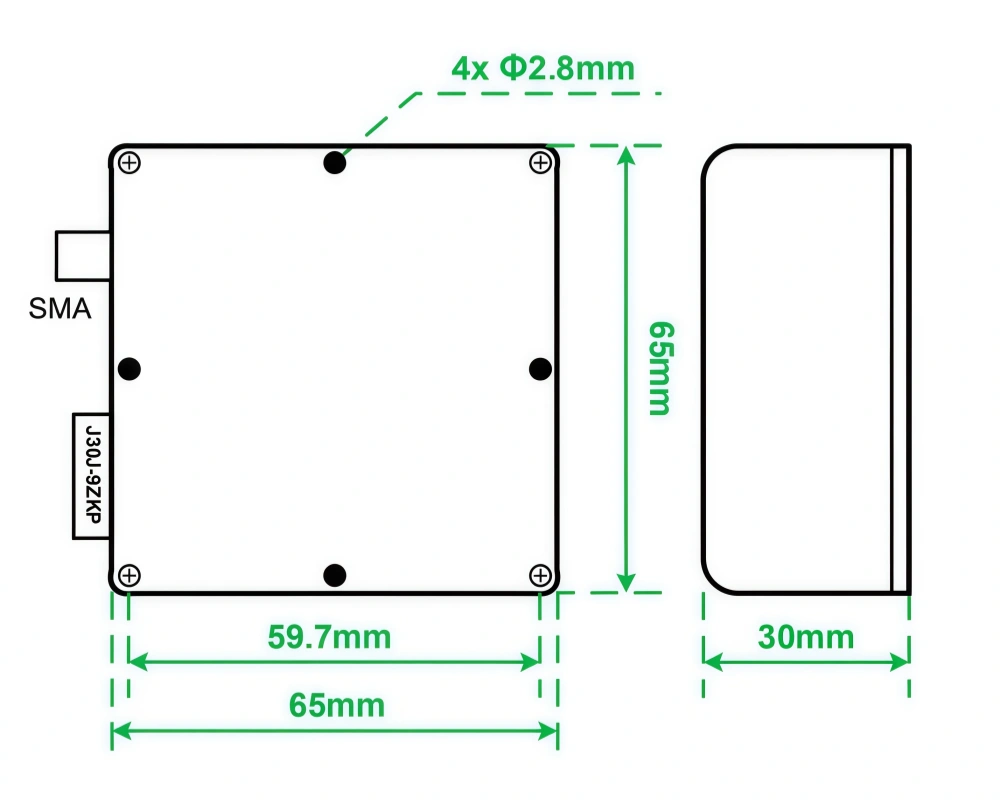

Figure 1: Symmetrical structural drawing defining the 65mm body profile, 30mm thickness envelope, 59.7mm bolt grid dimensions, and integrated J30J-9ZKP connection location.
NTTIM J30J-9ZKP Interface Blueprint & Pinout Assignments
| Pin Number | Signal Designation | Input / Output Type | Functional Description |
|---|---|---|---|
| 1 | VIN+ | Input | Main DC Power Supply Input Line (9~32Vdc Operating Range) |
| 2 | RS232A-RX | Input | Serial Port 1 Receive |
| 3 | RS232A-TX | Output | Serial Port 1 Transmit |
| 4 | VIN+ | Input | Redundant DC Power Supply Input Line (9~32Vdc Operating Range) |
| 5 | GND | Ground | Ground Connection Line |
| 6 | GND | Ground | Ground Connection Line |
| 7 | GND | Ground | Ground Connection Line |
| 8 | RS232B-RX | Input | Serial Port 2 Receive |
| 9 | RS232B-TX | Output | Serial Port 2 Transmit |
NTTIM Industrial GNSS Anti-Jamming Application Scenarios
- Industrial UAV Infrastructure Surveys: Secures uninterrupted positioning and altitude tracking for commercial drone platforms during corridor mapping and high-voltage utility grid monitoring.
- Automated Ground Vehicles & AGVs: Eliminates localized radio frequency masking and signal degradation caused by high-power industrial machinery in dense manufacturing plants.
- Autonomous Field Robotics: Maintains robust trajectory controls and continuous coordinate tracking for automated outdoor rovers operating under unpredictable electromagnetic environments.
- Electric Power Grid Synchronization: Serves as a ruggedized temporal safeguard for substation clocks, preventing data desynchronization by neutralizing localized suppressive interference.
- Telecommunication Base Stations: Eliminates carrier clock timing drift across fixed communication infrastructure networks, ensuring unbroken multi-constellation satellite tracking locks.
Engineering Integration Guidance Note: Review our comprehensive GNSS Anti-Jamming Systems & Processors portfolio to cross-reference multi-element terminal layouts, assess dynamic signal suppression bandwidths, or download complete hardware communication interface control documents (ICD) directly from our technical support desk.
