NTPOD079 High-Stability Dual EO IR Gimbal Pod

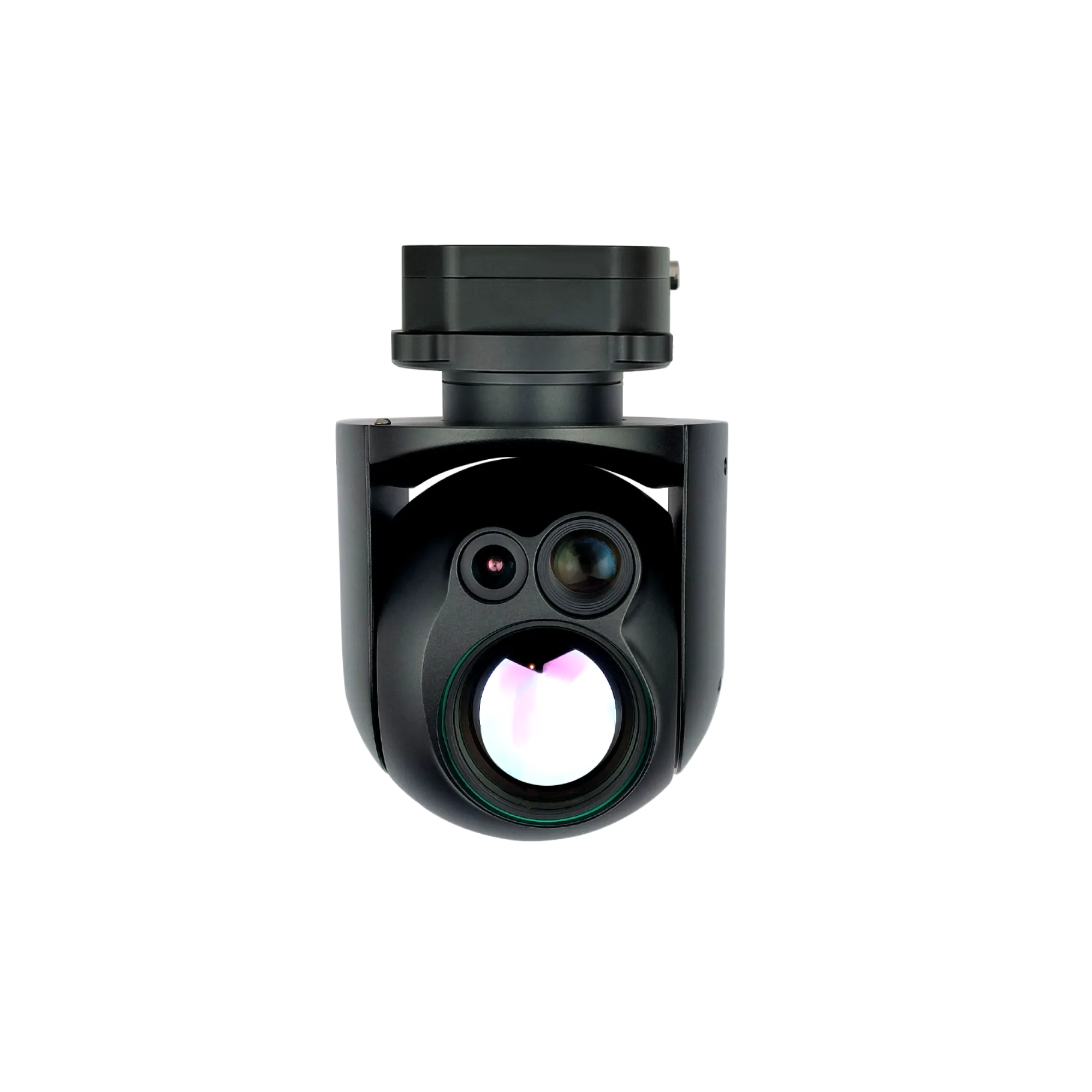

The NTSKY079 is a high-stability, dual eo ir gimbal pod configuring a triple-light sensor suite across an actively stabilized two-axis pan-tilt bench. Built for weight-restricted commercial observation airframes, this integrated payload merges ultra-high-definition visible tracking matrices with specialized uncooled long-wave infrared thermal technology.
- Triple-Light Sensor Suite: Integrating an 8M pixel 4K camera, a 2M pixel 1080P wide-angle lens, and a 45mm F1.0 uncooled infrared core.
- Mechanical Stabilization: Two-axis active gyro-stabilized system with pitch travel limits spanning -20° to +180° and unlimited yaw travel.
- Physical Demarcation: Ultra-light physical profile limited to 510±10g total structural mass within a compact φ148mm×136mm envelope.
- Control Integration: Native network RTSP code stream output with hardware compatibility over TTL, UART, and S.BUS protocol configurations.
NTPOD079 Dual EO IR Gimbal Pod Overview
Deploying a high-performance dual eo ir gimbal pod onto multi-rotor and fixed-wing structural platforms requires an optimal balance between payload mass and sensor data fidelity. The NTPOD079 meets these criteria through an advanced optical-mechanical-electrical integration framework, grouping two independent visible spectrum arrays alongside a high-sensitivity uncooled infrared microbolometer camera on a stabilized assembly. This multi-spectral integration supports simultaneous picture-in-picture visualization modes and local TF card dual-channel recording, delivering robust target auditing capabilities under severe illumination environments. The system routes real-time telemetry through an onboard processing bench, providing automated machine vision execution directly at the edge of the remote network bus.
System integration engineers can leverage an open interface architecture designed for immediate deployment across commercial drone fleets. The low-latency two-axis servo assembly mitigates aerodynamic disturbances and high-frequency structural vibration, keeping the pitch and roll jitter within an ultra-low ±0.02° envelope. By executing seamless digital data output across network protocols, this light weight dual eo ir gimbal pod preserves technical target parameters over long-range transport links, guaranteeing precise thermal tracking and situational awareness during critical infrastructure inspection, maritime monitoring, and emergency search and rescue operations.
NTPOD079 Two-Axis Stabilization Primary Functions / Capabilities
- Triple-Sensor Co-Axial Configuration: Pairs a 4K 8MP visible camera with a 1080P 2MP wide-angle CMOS sensor and a 45mm uncooled thermal matrix to provide complete environmental imaging coverage across fluctuating diurnal cycles via this unified dual eo ir gimbal pod architecture.
- Long-Range Electro-Optical Windows: Deploys a 35mm primary optical block to deliver narrow fields of view alongside a 6mm wide-field secondary lens, maximizing target identification potential.
- High-Sensitivity Infrared Thermal Core: Features an uncooled long-wave infrared core with a 45mm lens and an operational thermal sensitivity threshold of ≤50mk@F1.0, enabling continuous monitoring across severe ambient obscuration.
- Real-Time Temperature Analytics: Supports embedded temperature tracking routines spanning -20°C to 150°C, capturing maximum, minimum, and center-point data with an accuracy margin of ±3°C or ±3%.
- Active Two-Axis Gyro-Stabilization: Utilizes a high-torque pan-tilt mechanism to maintain stabilization bounds of ±0.02° pitch/roll and ±0.03° horizontal jitter across unlimited yaw travel velocities.
- Concurrent Tracking Machine Vision: Embeds video analytics capable of identifying up to 100 targets concurrently, maintaining target lock over objects from 16×16 to 256×256 pixels with automatic human and vehicle classification profiles.
- Dual-Channel Compressed Logging: Records synchronous 4K and 1080P video streams under H.264/H.265 compression formats directly to an integrated local microSD storage slot supporting capacities up to 256GB.
- Multi-Protocol Bus Communications: Interfaces seamlessly over TTL, UART, S.BUS, and Fast Ethernet architectures, accepting RTSP digital stream control codes to allow full remote camera and PTZ command access.
NTPOD079 Compact Mechanical Dimensions & Standardized Core Interface Blueprint
Developed with an emphasis on SWaP-C optimization parameters, this streamlined dual eo ir gimbal pod structural profile limits overall device weight to 510±10g to preserve aircraft flight time envelopes. The rear integration bulkhead mounts a high-reliability standardized multi-pin core connector layout, facilitating fast power distribution and synchronous multi-channel data streaming across the main platform bus.

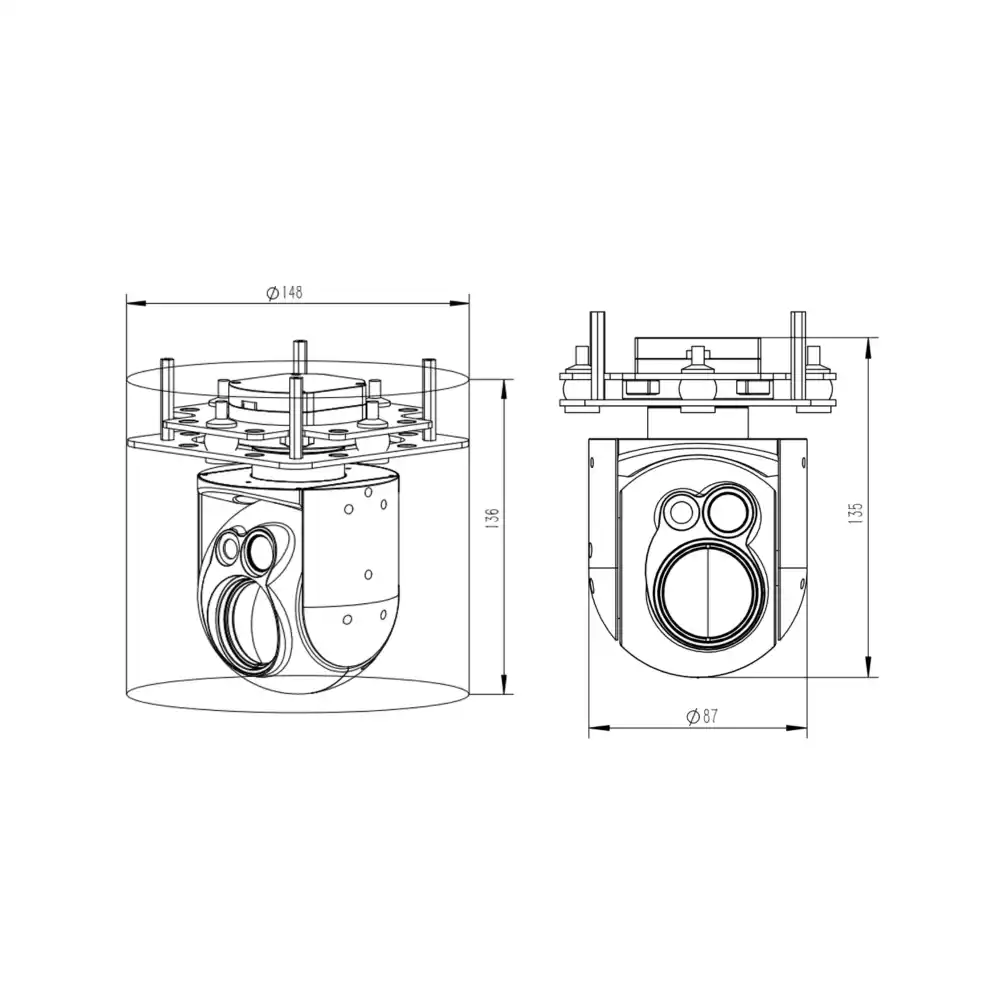

Figure 1: Side view dimensions detailing a total vertical assembly height of 136mm and an outer sphere clearance profile of 87mm, incorporating top-mounting damping interface points.
| Standardized Hardware Interface Pin Definitions | |
| Pins 1 & 2 | VCC Positive Power Port Input (DC 12V – 26.2V) |
| Pins 3 & 4 | GND Negative Power Ground Connection |
| Pin 5 | TX Serial Port Universal Asynchronous Data Transmitter |
| Pin 6 | RX Serial Port Universal Asynchronous Data Receiver |
| Pins 7, 8, & 14 | NC Reserved Floating Interface Links |
| Pins 9 & 10 | Rx+ / Rx- Differential Network Receiver Channels |
| Pins 11 & 12 | Tx+ / Tx- Differential Network Transmitter Channels |
| Pin 13 | S.BUS Digital Serial Control Bus Input Line |
| Pin 15 | EGND Dedicated Signal Reference Ground |

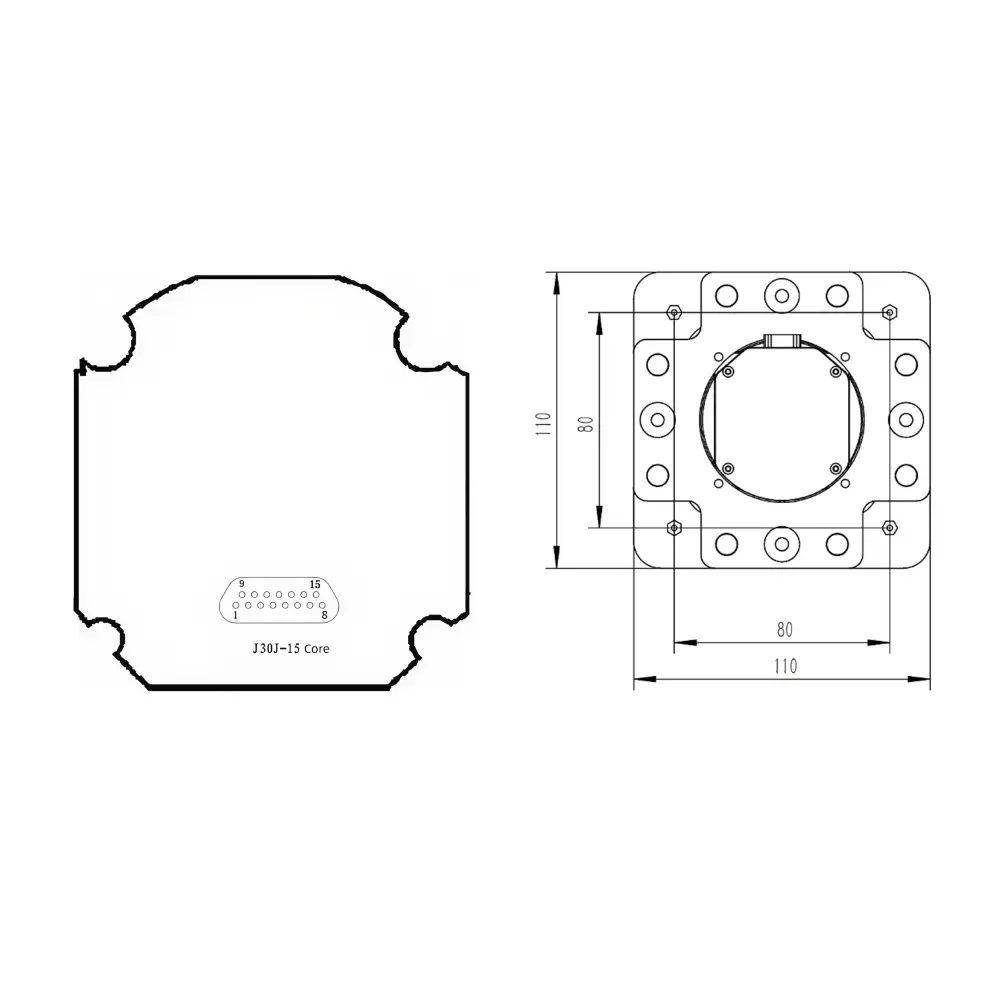

Figure 2: Pin alignment blueprint for the standardized core communication and voltage connector bus situated on the housing upper frame.
NTPOD079 dual eo ir gimbal pod Technical Data Matrix
| 4K Visible Light Sensor Parameters | |
| CMOS Sensor Grid Array | 8M Active Pixels |
| Digital Magnification Bounds | 7× Digital Zoom Scaling |
| Focal Length Configuration | 35mm Fixed Core Lens |
| Angular Field of View Envelope | 10.1° × 7.6° Field of View |
| Local Storage Codec Format | H.264 / H.265 compressed 4K video stream |
| 1080P Visible Light Sensor Parameters | |
| CMOS Sensor Grid Array | 2M Active Pixels |
| Digital Magnification Bounds | 9× Digital Zoom Scaling |
| Focal Length Configuration | 6mm Wide Angle Lens |
| Angular Field of View Envelope | 60° × 43° Field of View |
| Data Export Streaming Modes | Ethernet output: 1080P @ 30fps / 4K @ 30fps |
| Infrared Thermal Imaging Parameters | |
| Microbolometer Core Resolution | 640×512 Uncooled Infrared Pixel Matrix |
| Pixel Pitch Geometry | 12μm Geometry Size |
| Thermal Sensitivity Bound | NETD ≤50mk @ F1.0 Aperture |
| Spectral Response Range | 8μm to 14μm Wavelength Spectrum |
| Infrared Optical Lens & Field Angle | 45mm Fixed Focal Lens, FOV: 9.8° × 7.8° |
| Absolute Temperature Measurement Bounds | -20°C to 150°C Base Range (Extendable to 100°C~550°C) |
| Dynamic Measurement Precision Error | ±3°C or ±3% of current scale reading |
| Kinematic Stabilization Performance | |
| Mechanical Pitch Angular Limits | -20° to +180° Travel Envelope |
| Mechanical Yaw Angular Limits | Unlimited Position Rotation |
| Pitch and Roll Stabilized Jitter | ±0.02° Jitter Axis Deviation |
| Horizontal Tracking Stabilization Jitter | ±0.03° Jitter Axis Deviation |
| Integrated Servo Slew Rate Velocity | ≥60°/s Maximum Angular Slew |
| Maximum Dynamic Angular Acceleration | ≥150°/s² Dynamic Threshold |
| Target Tracking & Identification Core | |
| Minimum Resolvable Tracking Dimension | 16 × 16 Pixels Window Size |
| Maximum Tracking Window Dimensions | 256 × 256 Pixels Window Size |
| Maximum Allowable Occlusion Buffer | 2 Seconds Automatic Hold |
| Edge Analytics Slew Speed Limit | 50 Pixels/Frame Maximum Slew Velocity |
| Concurrent Target Extraction Capacity | ≥100 Targets Tracked Simultaneously |
| Machine Vision Classification Targets | Human, Vehicle Entities |
| Minimum Machine Vision Detection Size | 32 × 32 Pixels Resolution Grid |
| System Electrical & Environmental Tolerances | |
| Operational Voltage Input Bus | DC 12V to 26.2V Input Channel |
| Power Consumption Footprint | 6.4W Nominal Dynamic Load |
| Physical Envelope Dimensions | Maximum Diameter φ148mm × Height 136mm |
| Operational Structural Mass | 510±10g Net Weight |
| Integrated Storage Media Interface | 32GB to 256GB MicroSD TF Card (FAT32 Format) |
| Cold Boot Preparation Ready Time | 20 Seconds Startup Delay |
| Operational Ambient Thermal Limits | -10°C to +55°C (20% to 80% Relative Humidity) |
NTPOD079 Surveillance & Aerial Mapping Application Scenarios
- Commercial Utility Tower & Power Grid Auditing
- Midstream Oil & Gas Pipeline Thermography
- Infrastructure Environmental Protection & Hotspot Scanning
- Marine Search & Rescue Operations
- Critical Infrastructure Perimeter Surveillance
- Vehicle-Mounted & Shipboard Monitoring Campaigns
- Commercial Property & Facility Protection
Advanced Standoff Tracking & Optical Zoom Upgrades: This lightweight dual eo ir gimbal pod balances localized multi-spectral arrays with active two-axis gyro-stabilization. For long-range commercial observation campaigns requiring high-magnification continuous optical lenses or higher triaxial line-of-sight stabilization precision, analyze the technical metrics of our NTPOD100 Continuous-Zoom 640×512 LWIR Thermal Pod or scale up to the professional 30x continuous-zoom NTPOD115 EO IR Camera for UAV framework to enhance target detection bounds.
High-Precision Machine Vision & Alternative Telemetry Options: If your system integration architecture demands full three-axis FOC servo motor control loops paired with ultra-high zoom benchmarks or integrated laser ranging telemetry links, cross-reference the comprehensive sensor engineering matrices of our starlight night vision NTPOD207 Starlight Night Vision Gimbal Camera or review the technical assets of the quick-disconnect NTPOD125B Electro-Optical Pod to secure updated API and SDK schemas.
