NTLTDC80A 80mJ High Energy Laser Target Designator Module
The NTRON NTLTDC80A represents a high-energy, fluidless 1064nm optoelectronic sub-system configured for direct deployment within stabilized airborne gimbals and heavy-payload tracking architectures. Driven by uncooled solid-state mechanics, it converges extreme pulse energy output with long-range telemetry extraction, bypassing traditional liquid chilling dependencies completely.
- 80mJ High Energy Single Pulse Output
- 200m to 40,000m Extended Telemetry Range
- ≤0.03mrad Absolute Optical Axis Stability
- Fluidless Passive Thermal Management Sub-0.8kg Core
I. 1064nm Solid-State Emitter & 80mJ Laser Target Designator Module
High-energy 1064nm uncooled solid-state emitter engineered for multi-sensor payload synchronization.
To execute extended telemetry up to a 40,000m limit, the 80mj laser target designator NTLTDC80A utilizes a non-thermally controlled diode-pumped solid-state laser cavity configured for fluidless heat dissipation. This architecture clamps thermal energy fluctuation to ≤±8% across severe environmental boundaries from -40°C to +60°C, ensuring stable photon extraction without relying on active liquid chilling hardware or heavy thermoelectric cooling modules.
By implementing a passive, high-conduction aluminum alloy chassis, the module maintains a rigid optical axis stability of ≤0.03mrad under intensive 20Hz base irradiation cycles, effectively preventing boresight drift during long-range tracking. The system restricts laser beam divergence within a strict 0.12mrad to 0.3mrad profile, concentrating energy density across the 1064nm spectral window to optimize signal-to-noise ratio at extended target vectors. Delivering immediate plug-and-play initialization with zero pre-heating latency, this system-level integration core compresses total housing mass to ≤0.8kg and envelope dimensions to ≤150mm × 102mm × 55mm, freeing critical spatial margin inside drone surveying equipment, automated robotics navigation platforms, and remote monitoring solutions.
II. 80mJ Laser Target Designator Core Technical Advantages
- Optical Axis Stability: Constrains beam deviations beneath a threshold of ≤0.03mrad under continuous 20Hz base irradiation cycles, preserving precise boresight alignment across extended tracking paths.
- Operational Lifespan Profile: Guarantees structural endurance exceeding 2 million pulse emissions with less than 10% overall energy degradation, minimizing field service frequency in distributed remote monitoring networks.
- Pulse Energy Fluctuations: Restricts single-pulse energy variations to ≤±8% across full operational thermal boundaries from -40°C to +60°C through fluidless passive thermal management channels.
- Laser Illumination Coding: Utilizes 8 sets of pre-programmed internal fixed-frequency encoding profiles matched with an internal encoding precision of ≤0.2μs and a temporal accuracy limit of ≤±1μs.
III. Drone Surveying Equipment & Autonomous Robotics Navigation Applications
Aerospace Surveying & Airborne Sensor Pods
The NTLTDC80A interfaces directly with weight-critical airborne survey pods and drone surveying equipment. Delivering a heavy ≥80mJ energy pulse within a compact ≤0.8kg physical chassis, the module operates up to a 4,500m structural altitude ceiling compliant with GJB150.xA-2009 standards. By deploying a fluidless design that completely cuts liquid-chilling dependencies, it preserves total aircraft payload limits and power allocation budgets during extended 200m to 40,000m telemetry data acquisition loops.
Long-Range Terrestrial Monitoring & Robotics Guidance
Configured for advanced industrial laser measurement and machine vision integration, this non-contact measurement device executes automated distance detection across long-range tracking corridors. The 1064nm optical transmitter achieves a strict 98% measurement probability under complex atmospheric scattering conditions, supplying autonomous robotics navigation systems and remote monitoring solutions with real-time spatial telemetry via a continuous 5Hz refresh cycle.
IV. NTLTDC80A 80mJ Laser Target Designator Module Technical Specification Matrix
| Technical Parameter | Specification Value / Limit Conditions |
|---|---|
| Laser Center Wavelength | 1064 ± 3 nm |
| Single Pulse Energy Value | ≥ 80 mJ |
| Telemetry Ranging Bounds | 200 m to 40,000 m |
| Distance Ranging Accuracy | ± 2 m |
| Measurement Probability Rate | 98% |
| Laser Beam Divergence Profile | 0.12 mrad to 0.3 mrad |
| Optical Axis Stability Limit | ≤ 0.03 mrad |
| Laser Pulse Width Range | 10 ns to 20 ns |
| Base Irradiation Frequency | 20 Hz |
| Ranging Telemetry Frequency | 1 Hz / 5 Hz |
| Continuous Ranging Window | ≥ 1 min (At 5 Hz Continuous Telemetry) |
| Laser Illumination Range Limits | ≥ 8 km |
| Coding Temporal Accuracy | ≤ ±1 μs |
| Internal Encoding Discrepancy | ≤ 0.2 μs |
| Pre-programmed Code Selection | 8 Sets of Fixed-Frequency Reserved Internal Encoding Modes |
| Energy Fluctuation Profile | ≤ ±8% Over Full Thermal Operating Boundary |
| Total Housing Dimensions | ≤ 150 mm × 102 mm × 55 mm |
| Total Housing Mass | ≤ 0.8 kg (Measured at Maximum Beam Divergence Profile) |
| Optical Aperture Layout | Common Aperture Transmit/Receive Window |
| Mounting Parallelism Baseline | ≤ 0.6 mrad (Normal to Mounting Datum Surface) |
| Environmental Ingress Protection | IP67 Dust and Water Immersion Shielding |
| Operating Thermal Boundaries | -40°C to +60°C Environment Limit |
| Storage Temperature Limits | -55°C to +70°C |
| Maximum Working Altitude | 4,500 m (GJB150.xA-2009 Compliant) |
| Average Power Draw | Avg ≤ 80 W (At Maximum Divergence Settings) |
| Operational Input Voltage | DC 28V Nominal (22V to 32V Range) |
| Digital Command Interface | RS422 Serial Protocol Link |
| Serial Communication Baud Rate | 115,200 bps |
| External Sync Signal Connection | RS-422 Differential Signal Input Level |
| Total Operational Lifespan | > 2 Million Cycles (With <10% Energy Degradation) |
| Self-Test Diagnostic Framework | Built-In Test (BIT) with Real-Time Fault Reporting |
| Irradiation Duration Mode A | Single cycle: ≥60s (interval: 60s, 2 cycles) |
| Irradiation Duration Mode B | Single cycle: ≥17s (interval: 10s, 8 cycles) |
| Re-irradiation Cool Down Limit | Interval requirement ≥30 minutes after full cycles |
| Eye Safety Classification | Class 4 / IEC60825 Compliant |
V. Industrial Laser Measurement & Electrical Interface Layout
The electrical interface layout is engineered to withstand continuous current spikes up to the 20Hz base irradiation frequency limits without signal distortion. Voltage drops are managed dynamically between the 22V and 32V operation boundaries, maintaining continuous communication flow across shared platform power networks.
- Main Power Parameters: Operates at a nominal DC 28V with stable current draw bound beneath an average of 80W.
- Serial Protocol Topology: Employs a full-duplex RS422 communication interface configured for 115,200 bps transmission rates.
- Synchronization Port Configuration: Integrates an isolated RS-422 differential signal input for low-latency clock pairing.

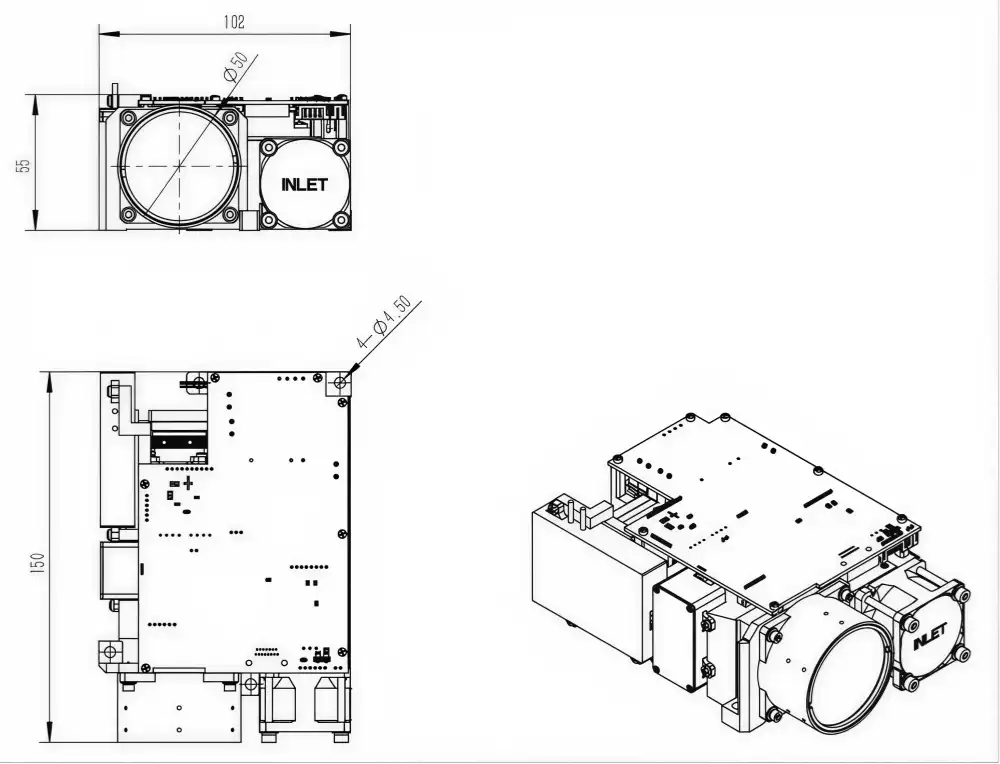

VI. NTLTDC80A 80mJ Laser Designator Mechanical Outline & Optics
The outer chassis of the NTLTDC80A is machined entirely from an oxidized aluminum alloy matrix, securing an IP67 environmental seal rating within a footprint limited to 150mm × 102mm × 55mm. This allows drop-in integration inside stabilized payload pods where liquid cooling circuits cannot be routed due to strict space limitations.
Effective Aperture: Common Aperture Configuration with Integrated Ø50mm Coaxial Exit Window | Mounting Reference: 4 × Ø4.5mm thru-mounting holes arranged on the precision-milled base plate, parallel to the reference datum surface within 0.6mrad.
- Optical Aperture Coaxial Alignment: Incorporates a single Ø50mm transmission window that aligns the 1064nm emitter path and the return reception path on the same optical axis.
- Structural Parallelism Guarantee: The mounting layout maintains a structural alignment tolerance of 0.6mrad or less, preventing boresight shift during extended high-frequency operation.
- Passive Heat Sink Routing: Milled chassis channels serve as high-conduction thermal escape paths, moving heat away from the uncooled laser cavity directly via surface radiation.
Radiation Eye Safety Warning (Class 4 / IEC60825): The NTLTDC80A emits hazardous, invisible 1064nm laser radiation capable of causing permanent retinal scotoma and vision loss. Protective eyewear must utilize deep red-tinted or gold-coated lenses with OD6+ rating. Goggles, engineering lockouts, and certified optical safety training are mandatory during all integration steps.
VII. 80mJ Laser Target Designator Universal Adaptability Matrix
The NTLTDC80A establishes a flexible, drop-in integration profile for multi-sensor optoelectronic pods, ground-based tracking platforms, and long-range terrestrial monitoring infrastructures without requiring structural adjustments. Its standardized RS422 protocol link and highly optimized mass-to-energy balance enable quick integration into existing system architectures.
By consolidating a high-energy emitter and a 40km range receiver within a single passivated housing, the module ensures reliable performance under severe flight loads and altitude changes up to 4,500m. This uncooled configuration delivers zero-maintenance operational longevity, translating complex long-range telemetry requirements into a dependable, plug-and-play realities.
Laser Designator System Selection Guide: Looking for ultra-lightweight payload profiles under tighter mass limits? Discover our compact NTLTDC40A Ultra-Compact 40mJ Laser Target Designator Module, engineered to streamline SWaP constraints without thermal management penalties.
