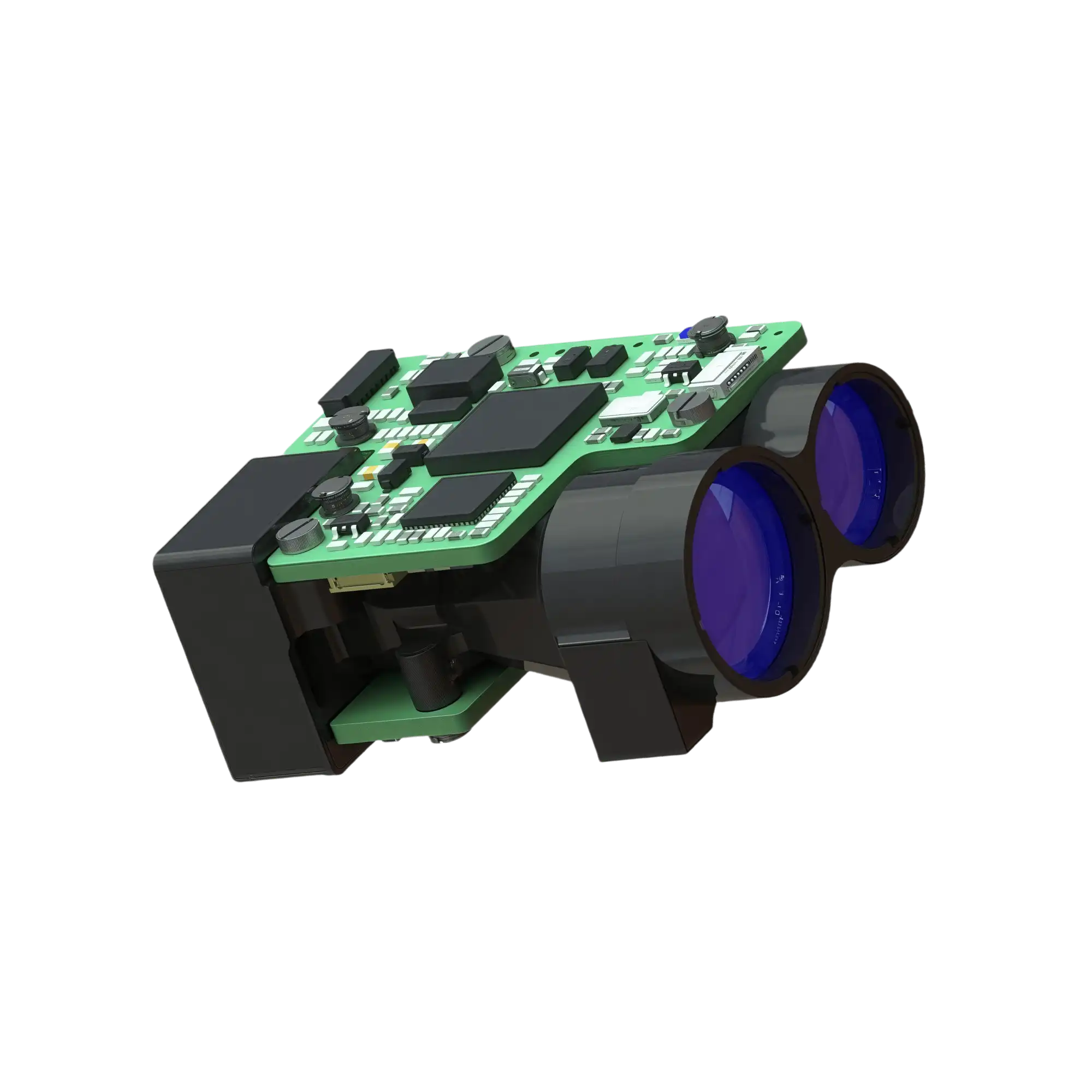

NLMB2500 905nm 45g Mobile Surveillance Laser Sensor
NLMB2500A 1535nm Compact Laser Rangefinder Module
NLMA3000 905nm 3km Long Range Laser Distance Sensor
The NLMA3000 stands as the pinnacle of 905nm sensing technology, offering an unprecedented 3km strategic reach for mission-critical border surveillance and maritime security.
- Strategic Reach: High-confidence 3000m detection baseline for expansive tactical monitoring
- Flagship Precision: Sub-meter level accuracy (±1m) optimized for long-distance target verification
- Maritime Ruggedness: IP67-rated lens assembly engineered for harsh coastal and offshore environments
- Tactical SWaP: Professional-grade ≤62g mass providing extreme range without infrastructure burden
The ultimate long range laser distance sensor for elite system integrators requiring maximum tactical range and all-weather reliability.
NLMA3000 905nm 3km Strategic Long Range Laser Distance Sensor
The Flagship 3000m Ranging Core for Border Control, Coastal Defense, and Tactical Security
As the industry-leading long range laser distance sensor, the NLMA3000 defines the standard for high-performance 905nm strategic monitoring. Engineered for mission-critical reliability, this 3km long range distance sensor provides a tactical-grade detection baseline for border surveillance and critical infrastructure protection. By integrating advanced anti-interference logic and high-efficiency optics, the NLMA3000 acts as a 905nm laser ranging module 3000m flagship, delivering ±1m precision even in the most demanding maritime and coastal defense environments. Weighing only ≤62g, it is the premier tactical border surveillance laser sensor for global security integrators.
Strategic Performance & Tactical Advantages
- 3km Elite Range: Specifically optimized for strategic infrastructure monitoring and long-distance perimeter protection.
- Maritime Ruggedization: Features IP67 lens protection and broad temperature stability (-20℃ to +50℃) for all-weather 3km distance sensing.
- Professional SWaP Efficiency: Compact ≤62g housing designed for seamless TTL serial laser sensor integration into UAV gimbals and fixed tactical gear.
- Tactical Assurance: Built-in self-test functions and anti-interference technology for mission-critical coastal defense missions.
- Operational Longevity: Power-off zero standby mode ensures maximum efficiency for unattended long-range security systems.
Official Technical Specifications
| Performance Parameter | Flagship Rating | Technical Note |
|---|---|---|
| Optical Wavelength | 905nm±5nm | Class 1 Eye-Safe (IEC 60825-1) |
| Max Detection Range | ≥3000m | Optimized for long-range maritime monitoring |
| Minimum Blind Zone | ≤15m | Strategic detection baseline |
| Ranging Accuracy | ±1m | High precision 905nm laser ranging core |
| Measurement Success Rate | ≥98% | High-confidence tactical reporting logic |
| Pulse Repetition Frequency | Single, 1Hz, 2Hz | Supports tactical continuous monitoring |
| Operating Temperature | -20℃ to +50℃ | Storage: -30℃ to +60℃ (Ruggedized) |
| Supply Voltage Range | DC 4.5V–5.5V | Reverse polarity protection integrated |
| Power Status | Standby ≤1W, Avg ≤2W | Power-off zero standby support |
| Communication Port | UART-TTL | Baud Rate: 57600bps |
| Physical Weight | ≤62g | SWaP-optimized strategic engine |
| Outline Dimensions | ≤50.5mm × 49.5mm × 29mm | Industrial-grade tactical profile |
| Protection Level | IP67 (Lens) | Sealed for maritime coastal defense |
Tactical Electrical Integration
Standard 8-pin high-reliability interface (Receptacle: DF52-8S-0.8H) for mission-critical security system data transmission.
| Pin No. | Terminal Mark | Electrical Function | Direction |
|---|---|---|---|
| 1 | VIN+ | Positive Power Input | Power Supply |
| 2 | — | — | — |
| 3 | VIN- | Negative Power Input | Power Reference |
| 4 | — | — | — |
| 5 | NC | Not Connected | NC |
| 6 | GND | System Ground | Ground |
| 7 | UART_TXD | Data Output | Sensor → Host |
| 8 | UART_RXD | Data Input | Host → Sensor |
Mechanical & Optical Interface Specification
Unit: mm | Tolerance Standard: GB/T1804-2000m | All mechanical data 100% maintained for strategic infrastructure laser sensor integration.
3km Strategic Core | Bottom-End Mounting | Unit: mm
- Mechanical Dimensions: Precision-engineered housing: ≤50.5mm × 49.5mm × 29mm.
- Structural Tolerances: Strict adherence to mounting standards: 31.6±0.1mm, 13±0.1mm, and 24.5±0.05mm for high-stability 3km laser ranging core alignment.
- Optical Apertures: Tx Φ18.6mm (Effective Transmitter) and Rx Φ24.2mm (Effective Receiver) optimized for maximum long-distance photon capture.
- Mounting Specification: Features 3 × M2.5(V5) threaded holes designed for vibration-resistant fixed security installation and tactical monitoring stability.
- Rugged Sealing: IP67 rated lens assembly provides a complete environmental barrier for maritime coastal defense and harsh outdoor deployment.
Target Strategic Applications
The NLMA3000 is the premier long range laser distance sensor for high-value asset protection and border security.
- Strategic Border Surveillance: Critical long-distance detection for national border security.
- Maritime Coastal Defense: Salt-spray resistant core for offshore and maritime monitoring.
- Critical Infravstructure: Tactical sensing for airports, energy bases, and military facilities.
Cross-Industry Versatility
Beyond tactical defense, the NLMA3000 serves as a high-end UART-TTL long range ranging engine for diverse professional fields:
UAV & Robotics: Ideal for drone navigation and high-altitude obstacle avoidance.
Surveying & Mapping: A reliable engine for forestry surveying and topographic infrastructure monitoring.
Surveying & Mapping: A reliable engine for forestry surveying and topographic infrastructure monitoring.
