NLMB1000 10g 905nm Ultra-Lightweight Miniature Drone Laser Rangefinder for OEM Integration

The NLMB1000 is a specialized entry in our series of miniature drone rangefinders, offering a world-class 10g ultra-lightweight architecture for weight-critical missions.

Max Range: 1000m (1km) stable long-distance detection
SWaP-Optimized: Ultra-light 10g module for micro-drone and gimbal integration
Laser Grade: 905nm pulsed laser, Class 1 eye-safe certified
Reliability: High stability optimized for FPV and miniature payload sensing

Ideal for FPV racing drones, micro-gimbal systems, and SWaP-constrained miniature payloads.

Ultraminiature 905nm Pulsed Laser Ranging Engine

SWaP-Optimized OEM Solution for Weight-Critical Micro-UAV Platforms

The NLMB1000 represents an ultraminiature, high-reliability entry in our series of miniature drone rangefinders, purpose-built for strategic OEM integration in space-constrained systems. Utilizing an ultra-light 905nm sensor architecture, it delivers stable non-contact distance measurement up to 1000 meters with industry-leading SWaP (Size, Weight, and Power) performance.

At a record-breaking weight of ≤10g and a compact Φ17×37.2mm cylindrical form factor, this 10g drone rangefinder supports precision miniature altitude hold and terrain sensing via a standard UART-TTL interface. This unhoused core module architecture allows system architects to achieve seamless mechanical integration into micro-drones, FPV gimbals, and weight-critical aerial platforms.

The system is engineered for mission-critical durability, featuring a narrow blind zone (≤5m), high measurement confidence (≥99%), and stable operation in rugged outdoor environments across a wide temperature range of -20℃ to +60℃ with integrated power reverse polarity protection.

905nm Pulsed Laser

≥1000m Range

≤±1m Accuracy

≤10g Ultra-light

Class 1 Eye-Safe

Core Performance Advantages

Class 1 eye-safe 905nm laser source with full IEC 60825-1 compliance.
Ultralight weight-to-range ratio: Delivers 1km ranging performance at only ≤10g mass.
Standard UART-TTL interface for high-speed system integration and real-time control.
Optimized short-range performance with a narrow blind zone of ≤5m.
High measurement confidence with a success rate of ≥99% under nominal conditions.
Wide operating temperature range (-20℃ to +60℃) for industrial-grade reliability.
Wide voltage input (3.3V–5V DC) with low power consumption for battery platforms.
Integrated power reverse polarity protection ensures hardware safety in rugged setups.

Technical Specifications

Item	Specification	Technical Note
Laser Wavelength	905 nm	Semiconductor Pulsed Laser
Eye Safety Grade	Class 1 (IEC 60825-1)	Certified eye-safe technology
Maximum Measuring Range	≥1000 m	Reflectivity 0.3, Visibility ≥10 km
Minimum Blind Zone	≤5 m	Short-range sensing optimization
Distance Accuracy	≤±1m (≤400m); ≤d×0.4% (>400m)	High-precision ranging performance
Measurement Success Rate	≥99%	High-confidence data acquisition
Operating Temperature	-20℃ to +60℃	Wide temperature tolerance range
Communication Interface	UART-TTL	Standard serial communication
Supply Voltage	3.3 V – 5 V DC	Wide voltage input support
Power Consumption	Standby ≤0.6W; Average <1.35W	SWaP-optimized power management
Dimensions	Φ17 mm × 37.2 mm	Ultra-miniature cylindrical package
Weight	≤10 g	Lightweight miniature drone sensor
Aperture (Tx/Rx)	Φ4.2 mm / Φ14.5 mm	Optimized optical window design

Electrical Interface & Pin Definition

Connector: 0.8WTB-6AB-01 (Matching Plug: 0.8WTB-6Y-2)

Pin No.	Label	Function	Direction
1	Power-EN	Power enable	Control
2	TTL_RXD	Serial data input	Host → Module
3	TTL_TXD	Serial data output	Module → Host
4	NC	Not connected	—
5	VCC	Positive power input (3.3V-5V)	Power
6	GND	Ground	Power / Signal

Typical Applications

UAV navigation, altitude hold, and terrain sensing.
Micro-gimbal systems and thermal/night vision integration.
Industrial automation and precision robotic positioning.
Security surveillance and smart vehicle detection.
Portable measurement, inspection, and tactical tools.

Customization: All performance parameters, mechanical form factors, communication protocols, and connector definitions can be customized to meet specific project and OEM requirements.

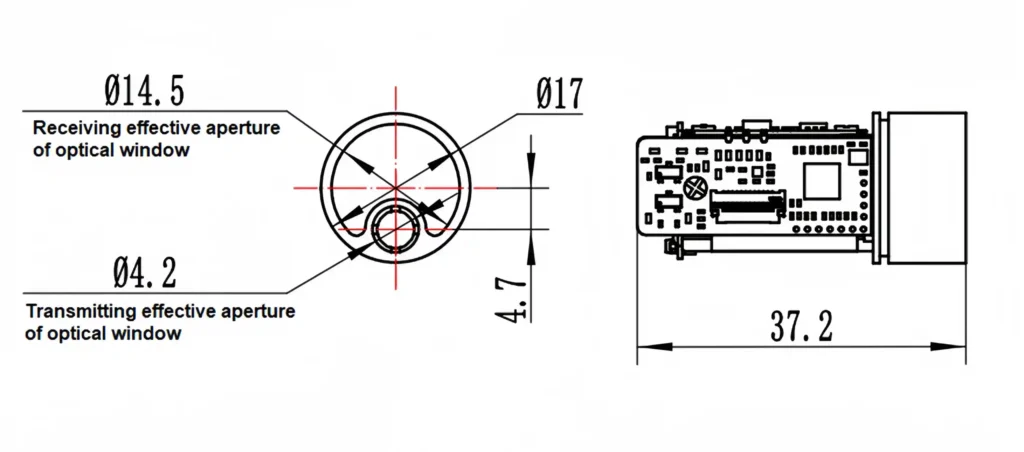

Mechanical & Optical Interface Diagram

The NLMB1000 features a standardized cylindrical package for embedded integration. Key physical dimensions and optical window alignments are detailed below:
